Acerca del producto

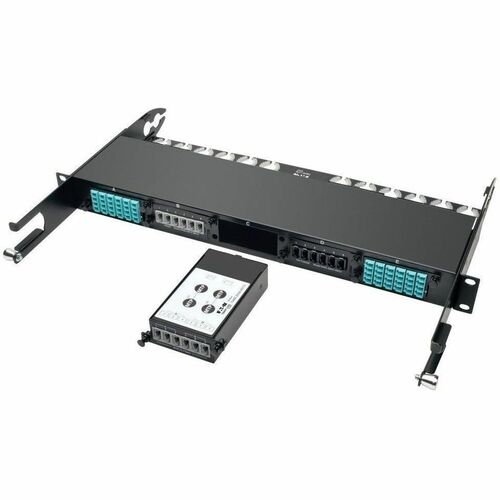

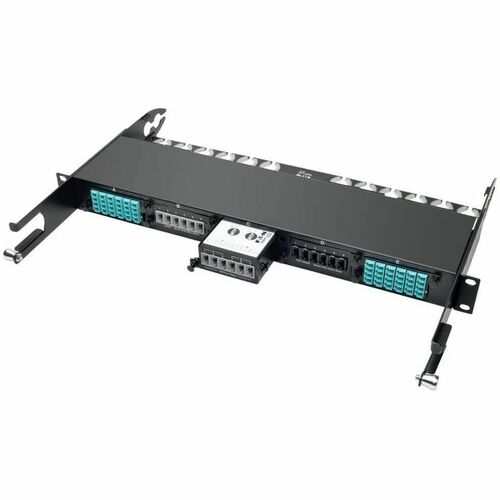

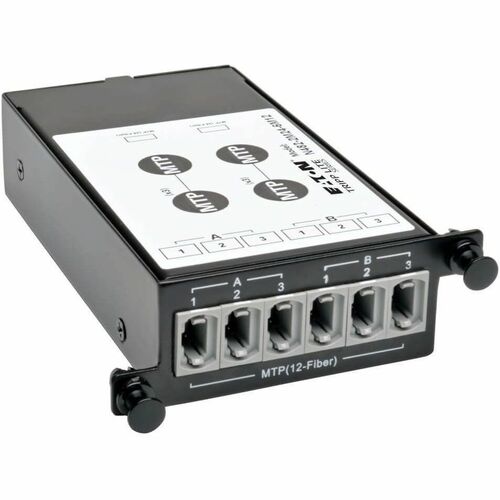

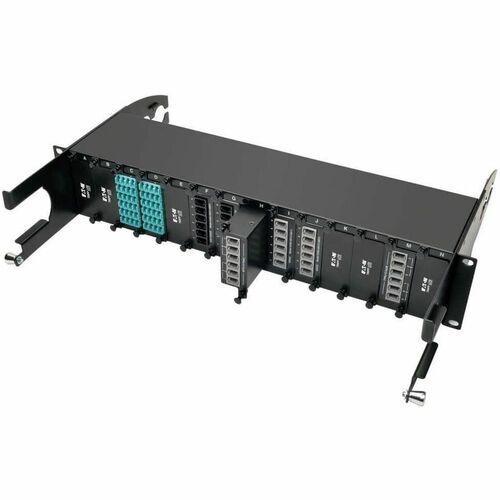

Tripp Lite's N482-2M24-6M12 is a High Density 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber, OM4, MTP/MPO connections. For use with Tripp Lite's N482-01U and N482-02U High Density Fiber Enclosure Panels; up to 5 cassettes per N482-01U, or up to 14 cassettes per N482-02U. Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Designed specifically for use with Tripp Lite cables, such as the N844- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Max insertion loss of 0.35dB. Constructed of heavy-duty steel housing.
- High Density Fiber Cassette for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels

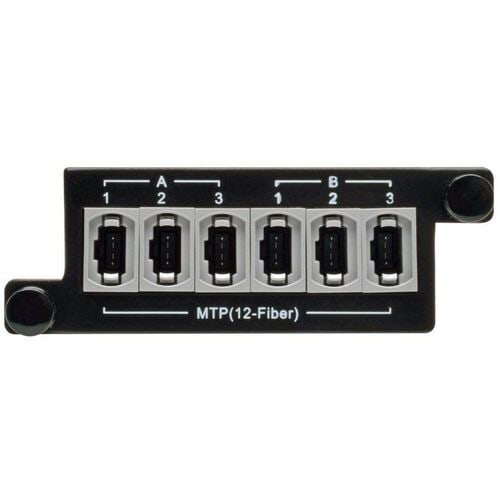

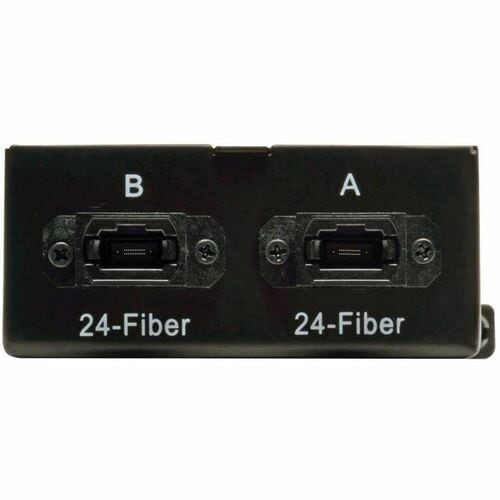

- 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber OM4 MTP/MPO connections
- Factory terminated connectors reduce the time and labor required of field connector terminations
- Max insertion loss of 0.35dB
Especificaciones técnicas
| Interfaces/Ports | |
| Number of RJ-11 Ports | 8 |
| Total Number of Ports | 8 |
| Miscellaneous | |
| Additional Information | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 9.12 oz (258.55 g) |
| Height | 1.20" (30.48 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 4.70" (119.38 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Network Patch Panel |
| Manufacturer Part Number | N4822M246M12 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | N482-2M24-6M12 |
| Product Name | N482-2M24-6M12 Network Patch Panel |
| Brand Name | Tripp Lite by Eaton |
