Cable Component

Expected delivery 3 to 7 business days (exceptions applied)

Tripp Lite

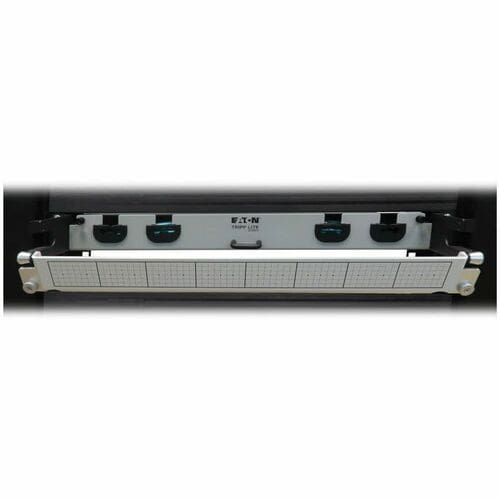

Panel de fibra precargado Tripp Lite by Eaton N48M-2M3X8M-20 - 1U de alto - Aqua, negro

Panel de fibra precargado Tripp Lite by Eaton N48M-2M3X8M-20 - 1U de alto - Aqua, negro

Precio habitual $2,672.06 CAD
Precio habitual $2,992.71 CAD Precio de oferta $2,672.06 CAD
-10% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Panel de fibra precargado Tripp Lite by Eaton N48M-2M3X8M-20 - 1U de alto - Aqua, negro - 19" de ancho - Montaje en rack

VPN: N48M-2M3X8M-20 SKU: CB563791 CPU: 37332262172

Cargando

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

Panel de fibra precargado Tripp Lite by Eaton N48M-2M3X8M-20 - 1U de alto - Aqua, negro

Resumen de información del producto

Panel de fibra precargado Tripp Lite by Eaton N48M-2M3X8M-20 - 1U de alto - Aqua, negro

Acerca del producto

Preloaded Fiber Panel, 1U - 2x (3x8F MTP/MPO-PC F/F) 24F Trunk Cables, OM4 Multimode, 20 m (65.6 ft.)

Features

1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time

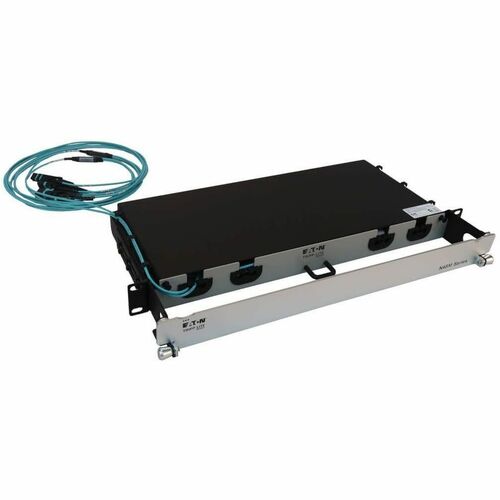

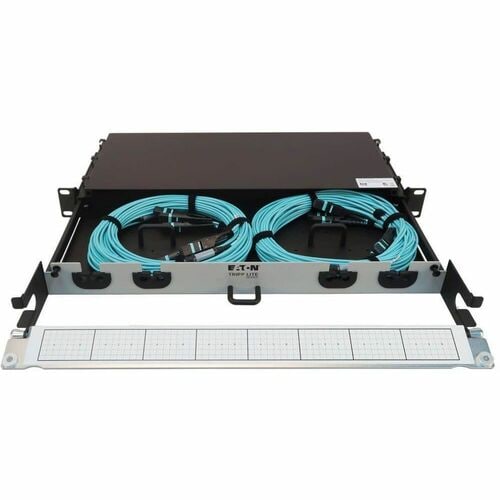

All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 1U chassis features four 24-fiber MTP/MPO-PC multimode trunk cables, all 20 meters (65.6 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48M-2M3X8M-20 mounts in just 1U of space in an EIA-standard 19-inch rack.

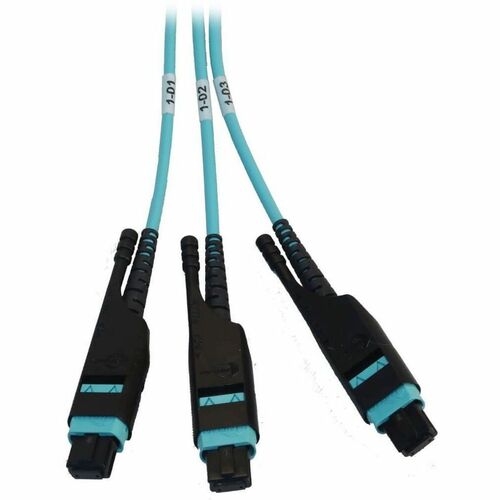

  • Dual MTP/MPO-PC 24-fiber OM4 multimode cables come coiled inside for instant use

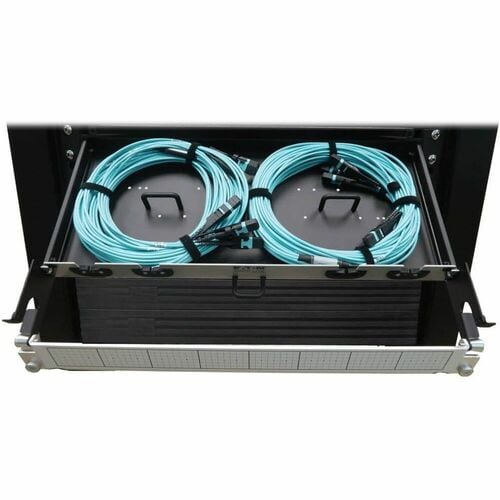

  • Use only as much cable as you need; store the remainder inside to avoid clutter
  • Flexible cable length allows reuse of cables if equipment is moved

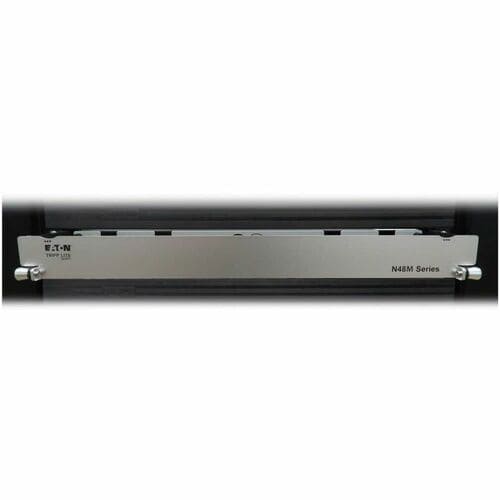

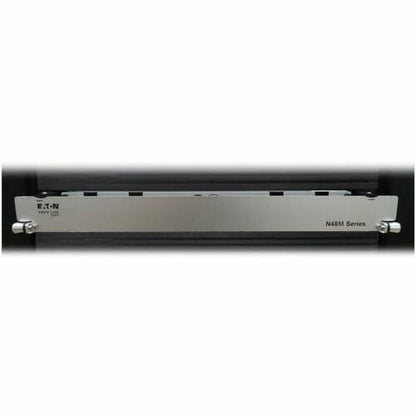

  • Aluminum chassis mounts into 1U of space in EIA-standard 19 in. racks
  • This product is covered by a Lifetime Limited Warranty

Especificaciones técnicas

Miscellaneous
Additional Information

OVERVIEW

  • Technology MTP/MPO; Multimode
  • Optical Mode OM4
  • Panel Cable Number 2
  • Panel Cable Length (m) 20
  • Mode Type Multimode

Firmware / Software Docs

  • Offset Ports No

PHYSICAL

  • Cable Jacket Rating OFNP
  • Cable Outer Diameter (OD) 2.9MM
  • Clad Diameter (micron) 125
  • Core Diameter (micron) 50
  • Primary Coating Diameter (micron) 245
  • Number of Fibers 24
  • Cable Length (ft.) 65.6
  • Cable Length (m) 20.00
  • Cable Length (in.) 787.4
  • Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC)

COMMUNICATIONS

  • Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
  • Wavelength 1300nm; 850nm
  • Attenuation @ 850NM 3.0dB/KM
  • Attenuation @ 1300NM 1.0dB/KM
  • Insertion Loss 0.35dB
Package Contents
  • N48M-2M3X8M-20 Preloaded Fiber Panel
  • 2 x MTP/MPO-PC to MTP/MPOPC Trunk Cables, 20 m (65.6 ft.)
  • Installation Guide
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
General Information
Product TypeNetwork Patch Panel
Manufacturer Part NumberN48M2M3X8M20
Manufacturer Website Addresshttps://tripplite.eaton.com/
ManufacturerEaton Corporation
Product ModelN48M-2M3X8M-20
Product NameN48M-2M3X8M-20 Preloaded Fiber Panel
Brand NameTripp Lite by Eaton
Physical Characteristics
Form FactorRack-mountable
Height1.73" (43.94 mm)
Width17.32" (439.93 mm)
Depth10.20" (259.08 mm)
Compatible Rack Unit1U
Compatible Rack Width19"
Product ColorAqua
Black
Color FamilyDual Color
Product MaterialAluminum
