Acerca del producto

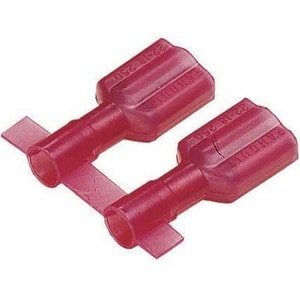

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon standard receptacle housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000 pieces.
- Tin contact plating
- Features terminal connector
Especificaciones técnicas
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Width | 0.35" (8.89 mm) |
| Insulation Material | Nylon |
| Product Color | Red |
| Technical Information | |
| Connector Details | 1 x Quick Disconnect |
| Connector Type | Quick Disconnect |
| Features | Flame Retardant |
| Molded | |
| Contact Plating | Tin |
| General Information | |
| Product Type | Terminal Connector |
| Manufacturer Part Number | DNF18-250FIB-3K |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 3000 |
| Manufacturer | PANDUIT CORP |
| Product Name | Terminal Connector |
| Brand Name | Panduit |
