Engineers and Project Managers that require a cost effective 4 or 8 port serial RS232-to-Ethernet solution that maintains serial device protocol integrity across Ethernet must consider the IOLAN STG. Having the highest performance processor available along with the Perle's unique TrueSerialTM technology, the IOLAN STG will provide the most authentic serial connections across Ethernet. IOLAN STS4-D Serial Terminal Servers are also available with support for Power over Ethernet (PoE).
Ideal for
- Engineers and Project Managers requiring a high performance serial to Ethernet interface for up to 4 or 8 serial RS232 based devices. Connect to serial based applications over Ethernet
- Compact size offers the smallest 4 or 8 port serial to Ethernet solution on the market
Why IOLAN STG Terminal Servers are the preferred choice:
- High performance processors for the best throughput available. Ideal for time sensitive applications
- Compact size offers the smallest 4 port serial to Ethernet solution on the market
- Next Generation IP support (IPv6) for investment protection and network compatibility
- TrueSerial™ packet technology - the most authentic serial connections across Ethernet ensures serial protocol integrity
- Primary/Backup host functionality enables automatic connections to alternate hosts should the primary TCP connection go down
- EasyPort Web - Access equipment serial console ports by using your java-enabled Internet browser
- TruePort - Perle's com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
- Clustering - Provides a single view of all out of band console ports. Ideal for large data centers
- FIPS 140-2 - Cryptographic modules meet US Government NIST compliancy
- Dynamic DNS - Easy console management access from anywhere on the Internet
- Intelligent Power cycling of equipment with Perle Remote Power Switches
- Java-free browser access to remote serial console ports via Telnet and SSH
- Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
- Lifetime warranty - best investment protection available
Especificaciones técnicas
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Memory | |
| Standard Memory | 512 MB |
| Power Description | |
| Input Voltage | 24 V DC |
| Processor & Chipset | |
| Processor Speed | 600 MHz |
| Network & Communication | |
| Network Standard | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Management Port | Yes |
| Number of Serial Ports | 8 |
| Physical Characteristics | |
| Weight (Approximate) | 1.21 lb (550 g) |
| Form Factor | Desktop |
| Rail-mountable | |
| Wall Mountable | |
| Height | 1.10" (28 mm) |
| Width | 4.41" (112 mm) |
| Depth | 6.14" (156 mm) |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | Emissions
Immunity
Safety
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Terminal Server |
| Manufacturer Part Number | 04031894 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | STG8 |

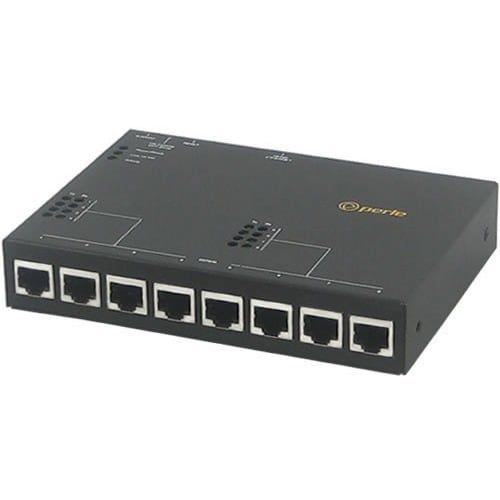

| Product Name | IOLAN STG8 Terminal Server |
| Product Line | IOLAN |
| Product Series | STG |
| Brand Name | Perle |
