Acerca del producto

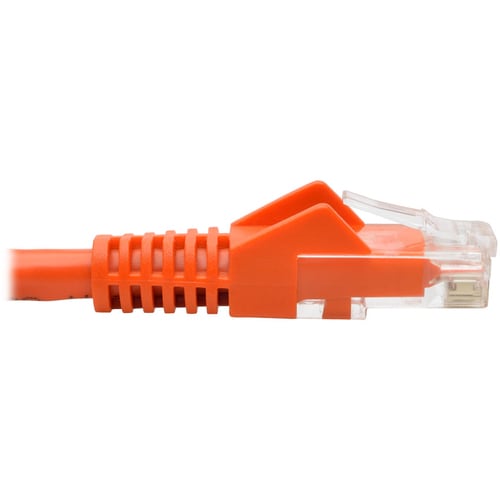

The N201-002-OR Cat6 Gigabit Snagless Molded UTP Patch Cable (M/M) is recommended for distributing data, voice and video through computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this two-foot orange cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire.
Manufactured from 24 AWG copper wire and protected by a rugged PVC jacket, the four-pair stranded UTP N201-002-OR delivers speeds up to 550 MHz/1 Gbps with minimal near-end crosstalk (NeXT). The RJ45 short-body connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. The N201-002-OR meets Cat6 cabling standards.
Features
Perfect Solution for Your Cat6 Gigabit Ethernet Networking Needs
- Ideal for connecting computers, network adapters, routers, servers, modems, hubs and switches in high-density data centers
- Designed for 10/100/1000 Base-T, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications
- Ensures peak performance throughout your LAN
- Rated for 550 MHz/1 Gbps communications
- Reduces impedance and structural return loss compared to standard 100 MHz wire
Snagless RJ45 Male Connectors
- Molded snagless boots prevent locking tabs from damage during installation
Premium Construction for Superior Performance
- High-quality 24 AWG 4-pair stranded copper wire
- Minimal near-end crosstalk ensures a strong signal
- Integral strain relief protects cable and connectors from stress and cracking
- Rugged PVC jacket stands up to long-term use
Meets Top Cabling Standards
- Meets Cat6 TIA/EIA standards
- Meets most other current industry standards, including IEEE 802.3ab, 802.5, ISO/IEC 11801 and ETL (Cat6 draft 11)
- Features Molded
- Allows you to access all of the networked data, swiftly and securely
- Features Category 6 cable type
Especificaciones técnicas
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 0.80 oz (22.68 g) |
| Shipping Height | 9" (228.60 mm) |
| Shipping Width | 7" (177.80 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Orange |
| Color Family | Orange |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | N201-002-OR |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Packaged Quantity | 1 |
| Manufacturer | Eaton Corporation |
| Product Model | N201-002-OR |
| Product Name | Gigabit N201-002-OR Cat.6 UTP Patch Network Cable |
| Product Line | Gigabit |
| Brand Name | Tripp Lite by Eaton |
| Technical Information | |
| Cable Length | 2 ft (0.61 m) |
| Conductor | Copper |
| Data Transfer Rate | 1 Gbit/s |
| Device Supported | Router |
| Switch | |
| ATM | |
| Computer | |
| Hub | |
| Network Device | |
| Jacket Type | CM |
| Shielding | No |
| Features | Booted |
| Minimized Near-End Crosstalk (NEXT) | |
| Molded | |
| Rugged Jacket | |
| Strain Relief | |
| Stranded | |
| Cable Characteristic | Patch Cable |
| Cable Type | Category 6 |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| American Wire Gauge | 24 AWG |
| Contact Plating | Gold |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Boot Type | Snagless |
| Number of Pairs | 4 |
