Acerca del producto

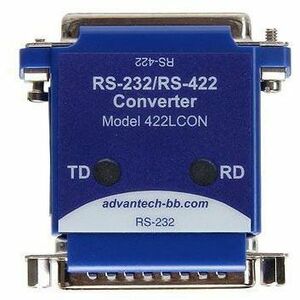

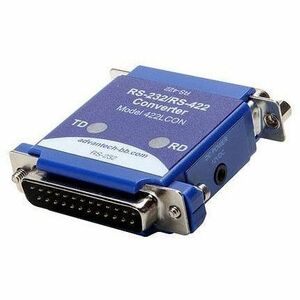

Mode 422LCON, non-isolated RS-232 to RS-422 converter, converts unbalanced RS-232 signals to balanced RS-422 signals. The RS-422 Standard uses a balanced voltage digital interface to allow communications of 90K bits per second on cable lengths of 1200 meters (4000 ft). Ten receivers can be connected to any one driver for use in multi-drop systems. The RS-232 port is a DB25 male connector with pins 2 (TD input) and 3 (RD output) supported. Protective Ground (pin 1) and Signal Ground (pin 7) are also connected. The RS-422 port is a DB25 female connector with Send Data outputs on pins 2 and 14, and Receive Data inputs on pins 5 and 17. Protective Ground (pin 1) and Signal Ground (pin 7) are connected through to the RS-232 connector. LEDs indicate Transmit Data and Receive Data. An external power supply is required (not included, sold separately).
- Converts unbalanced RS-232 signals to balanced RS-422 signals
- Extends RS-232 line up to 1200 m (4000 ft)
- Data rates up to 90 Kbps
- RS-422 driver can drive 10 RS-422 receivers in parallel ( use in multi-drop systems)
- DB25 M / DB25 F
- Power supply required (not included, sold separately)
Especificaciones técnicas
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Data Transfer Adapter |
| Manufacturer Part Number | 422LCON |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | 422LCON |
| Product Name | BB-422LCON Serial Converter, RS-232 DB-25 M to RS-422 DB25 F |
| Brand Name | Advantech |
| Technical Information | |
| Connector Type on First End | DB-25 RS-232 Serial - Male |
| Connector Type on Second End | DB-25 RS-422 Serial |
| Adapter Type | Serial |
| Connector on First End Details | 1 x DB-25 RS-232 Serial Male |
| Connector on Second End Details | 1 x DB-25 RS-422 Serial Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
