Acerca del producto

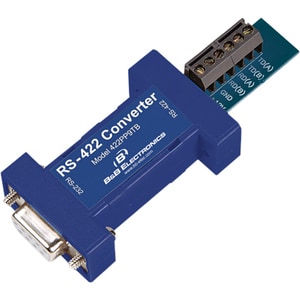

These port-powered RS-232 to 422/485 converters change TD and RD RS-232 lines to 422/485 signals. All of our serial port converters feature Automatic Send Data Control. SDC automatically enables the RS-485 driver when data is present on the RS-232 side. Control of the driver is automatic at rates up to 115.2 kbps.
- With data transfer adapter transfer files to any device with the great convenience
- High-quality standard Serial adapter
Especificaciones técnicas
| Physical Characteristics | |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Height | 4.50" (114.30 mm) |
| Width | 3" (76.20 mm) |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Connector Type on First End | DB-9 RS-232 Serial - Female |
| Connector Type on Second End | Terminal Block |
| Adapter Type | Serial |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial Female |
| Connector on Second End Details | 1 x RS-422 Terminal Block |
| General Information | |
| Product Type | Data Transfer Adapter |
| Manufacturer Part Number | 422PP9TB |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | 422PP9TB |
| Product Name | Convert RS-232 to 422/485 with Port Power |
| Brand Name | B+B SmartWorx |
