This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices.
The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility, by letting you install or remove the connectors with one hand without using additional tools.
The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.

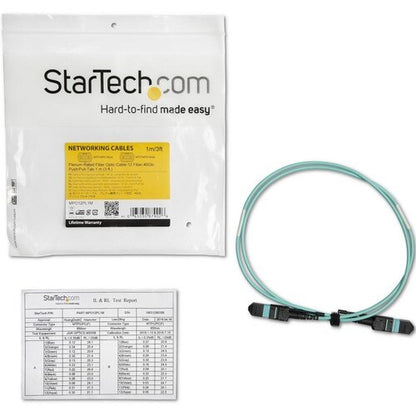

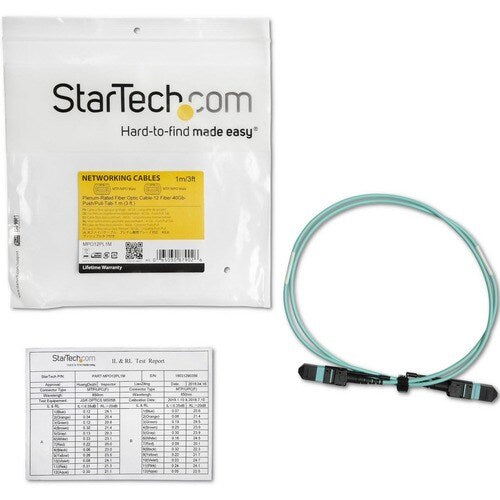

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO12PL1M from StarTech.com is backed by a lifetime warranty.
More from the Manufacturer
- Interface between different networking devices at varying speeds
- Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs
- MTP connectors use Type A straight-through pinout
- Get test data for your fiber cable - an insertion loss and return loss test report is included in each cable bag
- Save circuit card and rack space with twelve times the density of SC connectors
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 0.96 oz (27.22 g) |
| Weight (Approximate) | 0.60 oz (17.01 g) |
| Shipping Height | 0.39" (9.91 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Product Color | Aqua |
| Color Family | Green |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | MPO12PL1M |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Fiber Optic Network Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 3.3 ft (1 m) |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Hub |
| Network Device | |
| Server | |
| Media Converter | |
| Switch | |
| Patch Panel | |
| Router | |
| Jacket Type | OFNP |
| Plenum | |
| Cable Type | Fiber Optic |
| Connector Type on First End | MTP/MPO Network - Female |
| Connector Type on Second End | MTP/MPO Network - Female |
| Fiber Optic Mode | Multi-mode |
| Connector on First End Details | 1 x MTP/MPO Network - Female |
| Connector on Second End Details | 1 x MTP/MPO Network - Female |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Female |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
