Acerca del producto
- IEEE-61850-3
- IEEE 1613
- -40 to 85°C Operating Temperature
- Rugged IP30 Metal Panel Mount Case
- 50G Shock, 4G Vibration
- 2kV Triple Isolation
- 10 to 48 VDC Input Power
Especificaciones técnicas
| Physical Characteristics | |
| Weight (Approximate) | 7.36 oz (208.65 g) |
| Product Material | Metal |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Connector Type on First End | DB-9 RS-232 Serial - Female |
| Connector Type on Second End | Terminal Block RS-422/485 Serial |
| Adapter Type | Serial |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial Female |
| Connector on Second End Details | 1 x Terminal Block RS-422/485 Serial |
| General Information | |
| Product Type | Data Transfer Adapter |
| Manufacturer Part Number | 485DRCI-PH |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | 485DRCI-PH |

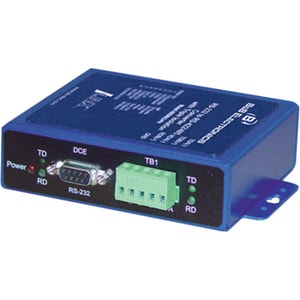

| Product Name | Heavy Industrial RS-232 to RS-422/485 Isolated Converter |
| Brand Name | B+B SmartWorx |
