Acerca del producto
2 and 3-way isolated optical repeater converts, protects & extends data signals
Optical isolation protects your devices from transient surges and ground loops on your data line. The optical repeaters/isolators add 4,000 feet (1.2 km) and another 32 nodes to an RS-485 data circuit. By configuring one side as RS-422 and the other as RS-485, the models can act as a converter to allow your four wire RS-422 equipment to talk to a 2-wire RS-485 device.
View and compare our optical isolation solutions below. See the Details, Specs, and Download tabs for further information on each optical repeater.
Especificaciones técnicas
| Power Description | |
| Input Voltage | 30 V DC |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 6.40 oz (181.44 g) |
| Height | 6" (152.40 mm) |
| Width | 5.50" (139.70 mm) |
| Depth | 3.70" (93.98 mm) |
| Product Material | Plastic |
| General Information | |
| Product Type | Signal Repeater |
| Manufacturer Part Number | 485OPDR |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | 485OPDR |

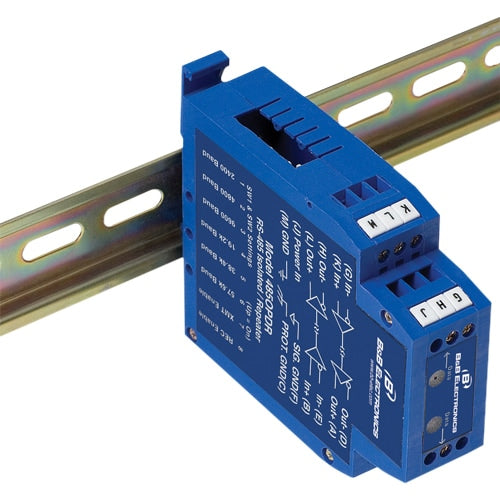

| Product Name | RS-485/422 Isolated Repeater, DIN Rail |
| Brand Name | B+B SmartWorx |
