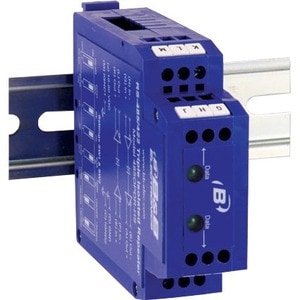

485OPDR-HS
The 485OPDR-HS is a high speed, optically isolated RS-422/485 repeater that supports data rates up to 1.5 Mbps, making it suitable for use in fieldbus systems such as Profibus.
The 485OPDR-HS provides 2 kV digital Isolation with 8 kV air ESD protection and 600 W transient voltage suppression on the data lines.
Range Extension
The 485OPDR-HS can be used to extend the range of a network up to 4000 ft. (1.2 km), depending on data rates, and to add additional nodes. 2-Wire RS-485, 4-Wire RS-485 and RS-422 are supported. Data signals and the power inputs connect to built-in terminal blocks.
Enclosure
The repeater operates on externally sourced 10 to 30 VDC power. The enclosure has a DIN rail mount that is designed to fit easily on a standard 35mm rail.
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Serial Port | Yes |
| PoE (RJ-45) Port | No |
| Miscellaneous | |
| Additional Information | Signals:
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Physical Characteristics | |
| Form Factor | Rail-mountable |
| Height | 3.70" (93.98 mm) |
| Width | 1" (25.40 mm) |
| Depth | 3.10" (78.74 mm) |
| General Information | |
| Product Type | Network Repeater |
| Manufacturer Part Number | 485OPDR-HS |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | 485OPDR-HS |
| Product Name | High Speed Isolated RS-422/485 Repeater |
| Brand Name | B+B SmartWorx |
