Acerca del producto

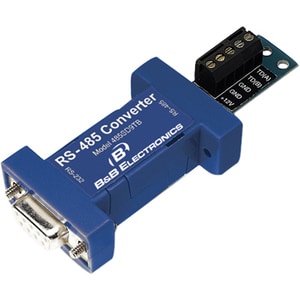

The 485SD9TB is a port-powered two-channel RS-232 to RS-485 converter. It converts the TD and RD RS-232 lines to balanced half-duplex RS-485 signals. The unit is powered from the RS-232 data and handshake lines whether the lines are high or low. An external power supply can be connected to two terminals on the RS-485 connector if no handshake lines are available. The 485SD9TB has a DB-9 female connector on the RS-232 side and a terminal block connector on the RS-485 side.
- With data transfer adapter easily transfer data with high speed
- High-quality standard Serial adapter
Especificaciones técnicas
| Physical Characteristics | |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Height | 4.50" (114.30 mm) |
| Width | 3" (76.20 mm) |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Connector Type on First End | DB-9 RS-232 Serial - Female |
| Connector Type on Second End | Terminal Block |
| Adapter Type | Serial |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial Female |
| Connector on Second End Details | 1 x RS-485 Terminal Block |
| General Information | |
| Product Type | Data Transfer Adapter |
| Manufacturer Part Number | 485SD9TB |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | 485SD9TB |
| Product Name | Port-Powered RS-485 Converter |
| Brand Name | B+B SmartWorx |
