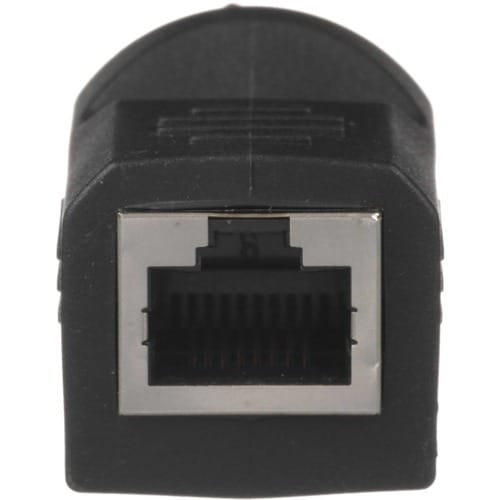

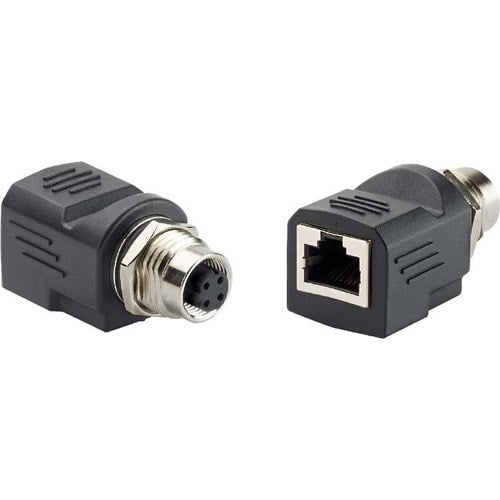

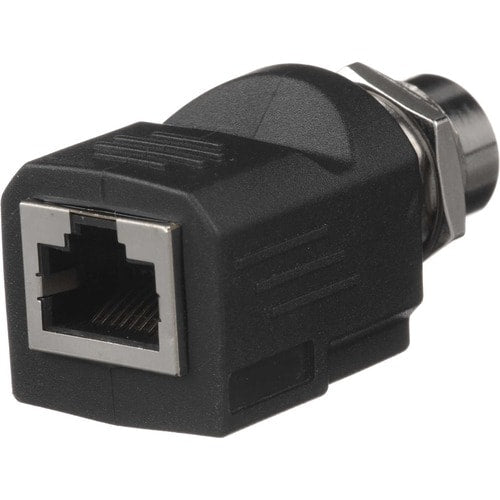

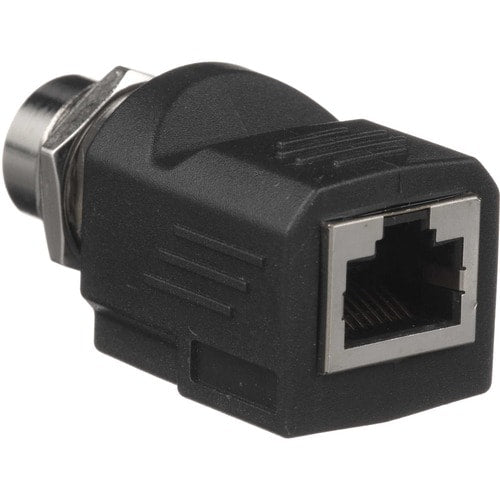

The IndustrialNet™ M12 D-Code to RJ45 coupler adapter is ideal for use in manufacturing as well as other industrial environments. The housing for the M12 D-Code to RJ45 coupler adapter is constructed of Nylon GF. The adapter has an ingress protection rating of IP20 on the RJ45 side and IP68 on the M12 side when mated. The M12 D-code to RJ45 coupler adapter offers an extended temperature range as required for more demanding applications. This adapter is easily installable without special tools.
- With network adapter, extend network cables conveniently
- High-quality standard M12/RJ-45 adapter
Especificaciones técnicas
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Connector Type on First End | M12 Network |
| Connector Type on Second End | RJ-45 Network - Female |
| Adapter Type | M12/RJ-45 |
| Connector on First End Details | M12 Network |
| Connector on Second End Details | RJ-45 Network - Female |
| General Information | |
| Product Type | Network Adapter |
| Manufacturer Part Number | ICAM12DRJS |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | Industrial M12 D-Code to RJ45 Coupler Adapter |
| Brand Name | IndustrialNet |
| Physical Characteristics | |
| Height | 0.91" (23.11 mm) |
| Width | 0.97" (24.64 mm) |
| Depth | 1.90" (48.26 mm) |
| Product Color | Black |
| Product Material | Nylon |
| Die-cast Zinc | |
| Nickel |
