Acerca del producto

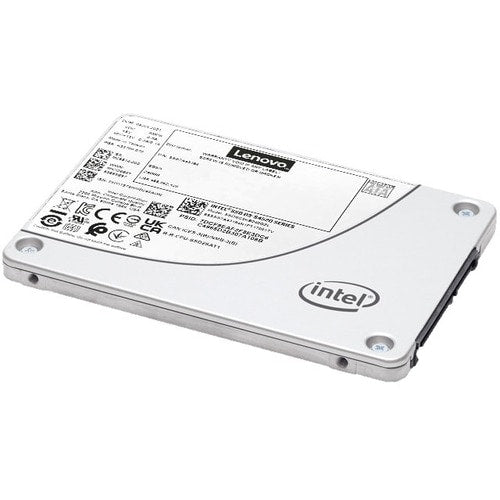

The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S4520 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4520 SSDs and consider their use in IT solutions.
- Have data stored faster with SATA/600 interface that optimizes burst performance
- The high-read speed of 550 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 510 MB/s, get a quick response when updating or transferring files
- Provides sufficient storage capacity of 960 GB for your computer
Especificaciones técnicas
| Network & Communication | |
| Wireless LAN | No |
| Technical Information | |
| Storage Capacity | 960 GB |
| Warranty | |
| Additional Warranty Information | The S4520 SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Hot Swappable | Yes |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 0.28" (7 mm) |
| Miscellaneous | |
| Compatibility | Lenovo ThinkSystem Servers:
|
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Drive Performance | |
| Maximum Read Transfer Rate | 550 MB/s |
| Maximum Write Transfer Rate | 510 MB/s |
| Random 4KB Read | 90000IOPS |
| Random 4KB Write | 43000IOPS |
| Endurance (DWPD) | 3 |
| Endurance (TBW) | 5427.20 TB |
| Endurance Type | Read Intensive |
| General Information | |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A17108 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 7mm S4520 960GB Read Intensive SATA 6Gb HS SSD |
| Product Series | S4520 |
| Brand Name | Lenovo |
