Acerca del producto

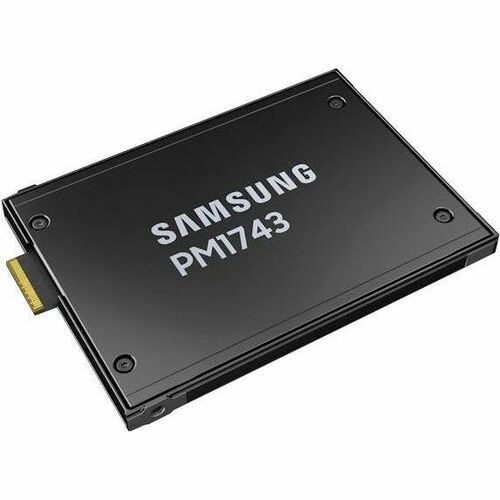

The ThinkSystem PM1743 Read Intensive NVMe PCIe 5.0 SSDs, available in capacities up to 15.36TB, are general-purpose yet high-performance NVMe PCIe Gen 5 SSDs. Available in both 2.5-inch and E3.S EDSFF form factors, they are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the PM1743 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
- The high-read speed of 14000 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 6000 MB/s, get a quick response when updating or transferring files
- With 7.68 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs
- PCI Express NVMe 5.0 x4 interface provides quick data transfer and greater throughput
Especificaciones técnicas
| Technical Information | |
| Storage Capacity | 7.68 TB |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 5.0 x4 |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Lenovo ThinkSystem Server:
|
| Device Supported | Server |
| Physical Characteristics | |
| Weight (Approximate) | 4.23 oz (120 g) |
| Drive Type | Internal |
| Form Factor | E3.S |
| Height | 0.30" (7.50 mm) |
| Width | 2.99" (76 mm) |
| Depth | 4.45" (113 mm) |
| Drive Performance | |
| Maximum Read Transfer Rate | 14000 MB/s |
| Maximum Write Transfer Rate | 6000 MB/s |
| Random 4KB Read | 2500000IOPS |
| Random 4KB Write | 300000IOPS |
| Endurance (DWPD) | 1 |
| Endurance (TBW) | 14016 TB |
| Endurance Type | Read Intensive |
| General Information | |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A88777 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem E3.S PM1743 7.68TB Read Intensive NVMe PCIe 5.0 x4 Trayless SSD |
| Product Series | PM1743 |
| Brand Name | Lenovo |
