Acerca del producto

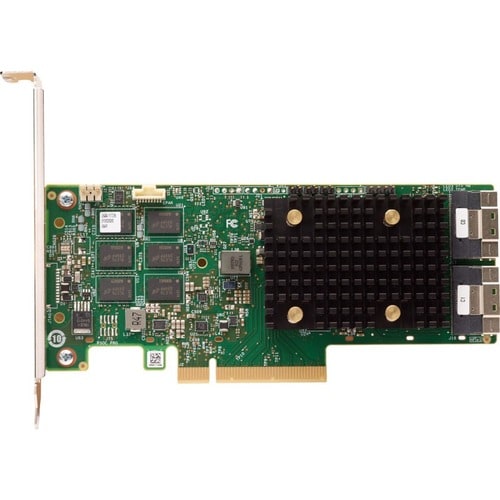

La familia ThinkSystem RAID 940 de controladores RAID SAS PCIe 4.0 de 12 Gbps son adaptadores RAID en chip (ROC) de alto rendimiento para la conectividad con unidades internas del servidor. Estos adaptadores admiten los niveles RAID 0, 1, 10, 5, 50, 6 y 60, e incluyen una amplia gama de funciones de RAS y gestión.
Especificaciones técnicas
| Memory | |
| Cache Memory | 8 GB |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Warranty | |
| Additional Warranty Information | The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades. |
| Interfaces/Ports | |
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | Four x8 SFF-8654 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | SAS Controller |
| Manufacturer Part Number | 4Y37A09735 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 940-16i |
| Product Name | ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Internal Adapter |
| Product Series | 940 |
| Brand Name | Lenovo |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Device Supported | Server |
| RAID Levels | 10 |
| 5 | |
| 50 | |
| 6 | |
| 1 | |
| JBOD | |
| 0 | |
| 60 | |
| Controller Type | 12Gb/s SAS |
| Operating System Supported | Red Hat Enterprise Linux 8.2 |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 7.8 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| Red Hat Enterprise Linux 8.4 | |
| Ubuntu 20.04 LTS | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Windows Server 2016 | |
| Red Hat Enterprise Linux 8.3 | |
| Ubuntu 18.04 LTS | |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
