The 5000 series is a compact, high-performance electric strike designed for low-profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door, and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latch bolts up to 5/8"" throw.

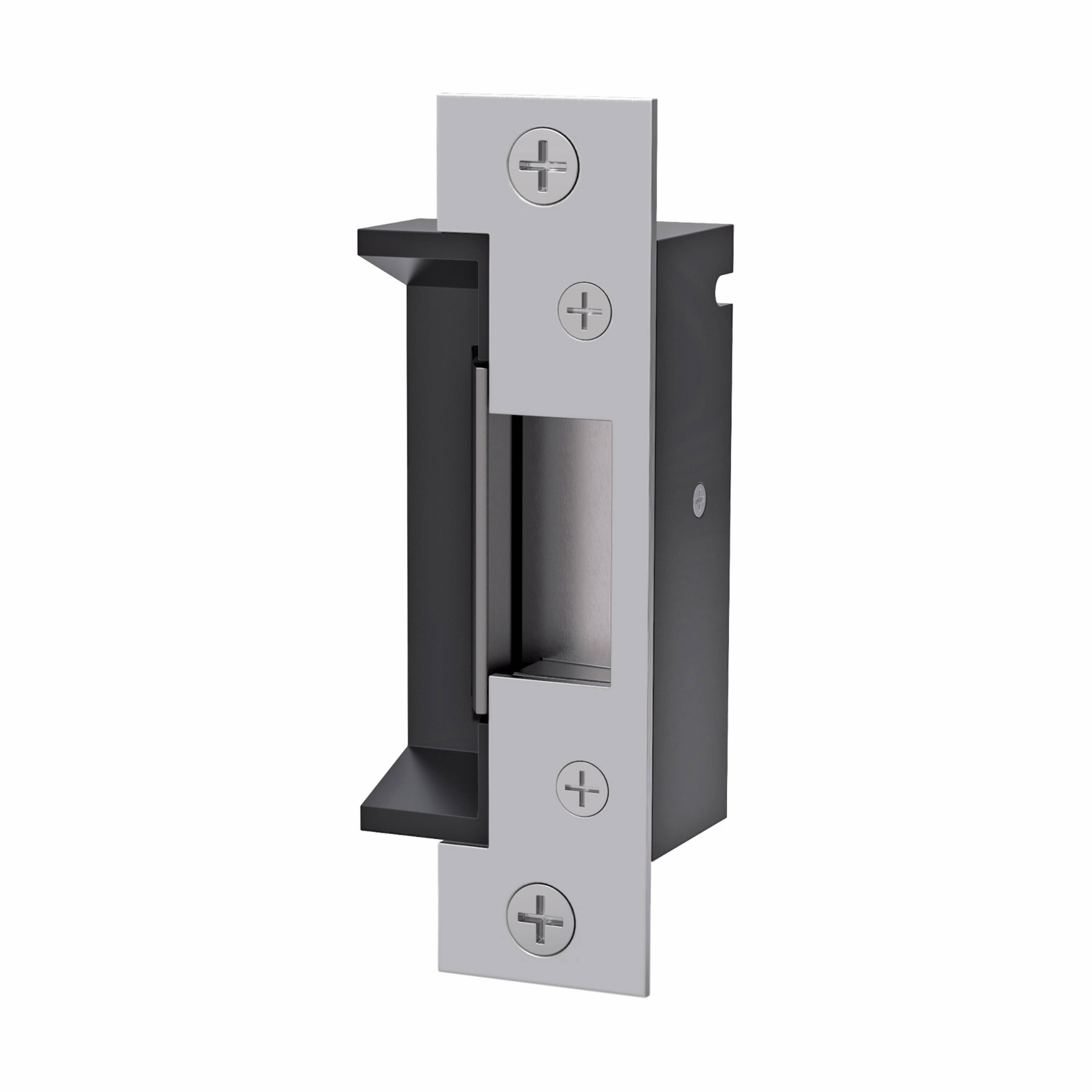

HES 5000C-12/24D-630 Universal Electric Strike with 501 and 501A faceplate:
- Tamper-resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2"" - 5/8"" latch bolt (5/8"" with 1/8"" door gap)
- Strike body depth 1-1/16
- Plug-in connector
- Trim enhancer included
- Dual voltage 12 or 24 VDC/VAC
Especificaciones técnicas
The 5000 series is a compact, high-performance electric strike designed for low-profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door, and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latch bolts up to 5/8"" throw.
HES 5000C-12/24D-630 Universal Electric Strike with 501 and 501A faceplate:
- Tamper-resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Non-handed
- Internally mounted solenoid
- Accommodates 1/2"" - 5/8"" latch bolt (5/8"" with 1/8"" door gap)
- Strike body depth 1-1/16
- Plug-in connector
- Trim enhancer included
- Dual voltage 12 or 24 VDC/VAC
