Acerca del producto

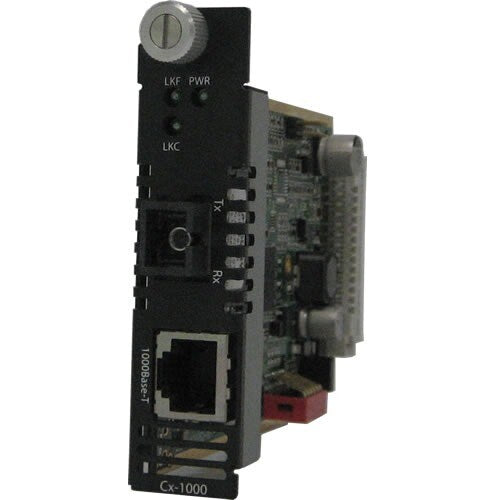

Installed in a high density Perle Media Converter Chassis, Perle's line of feature rich Managed Gigabit Media Converter Modules transparently connect copper to fiber. Our Gigabit Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. Along with a Media Converter Management Module in the chassis, configuration and monitoring of the copper and fiber ports can be performed. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's managed gigabit ethernet converter modules the smart choice for IT professionals.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Takes minimal energy and effort to get installed internally
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Especificaciones técnicas
| Physical Characteristics | |
| Weight (Approximate) | 5.29 oz (150 g) |
| Form Factor | Internal |
| Network & Communication | |
| Network Technology | 1000Base-BX |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Miscellaneous | |
| Compatibility | Perle Media Converter Chassis |
| Certifications & Standards |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Media & Performance | |
| Maximum Distance Supported | 0.55 km |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
| 0.05 mil (0 mm) | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05042880 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | CM-1000-M1SC05D |
| Product Name | CM-1000-M1SC05D - Gigabit Ethernet Media Converter Managed Module |
| Brand Name | Perle |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
