Acerca del producto

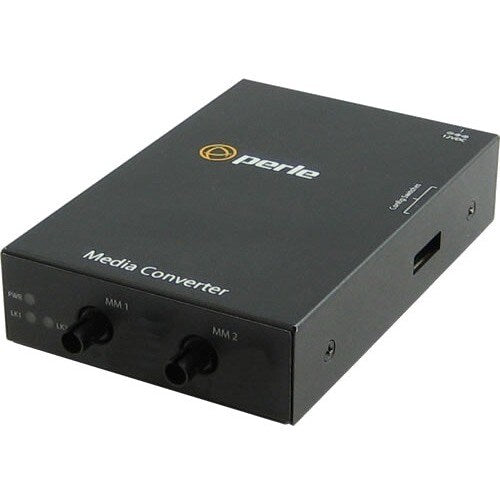

Perle's feature rich S-100MM Fast Ethernet Fiber to Fiber Media Converters enable transparent fiber extension of 100Base-FX multimode fiber to 100Base-FX multimode or 100Base-LX/EX/ZX/BX single mode fiber.
Perle's advanced features make the end to end fiber link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. In addition, a lifetime warranty and free worldwide technical support make Perle's S-100MM Fast Ethernet Fiber to Fiber Media Converters the smart choice for IT professionals.
Whether you need to extend multimode to multimode or multimode to single mode, Perle has an extensive range of S-100MM Fast Ethernet Fiber to Fiber Media Converters to meet your fiber conversion requirement.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 100Base-BX technology get up to 100Mbps data transfer rate over optical fiber cable
- The Rail-mountable provides convenient installation
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Especificaciones técnicas
| Power Description | |
| Power Source | AC Adapter |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Network & Communication | |
| Network Technology | 100Base-BX |
| 100Base-FX | |
| Ethernet Technology | Fast Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 10.58 oz (300 g) |
| Form Factor | Rack-mountable |
| Rail-mountable | |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05060604 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-100MM-S1ST20D |
| Product Name | S-100MM-S1ST20D Transceiver/Media Converter |
| Brand Name | Perle |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Network (RJ-45) | No |
| Management Port | No |
| Number of ST Ports | 2 |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Simplex | |
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Single-mode | |
| Fiber Optic Cable Core/Cladding Specification | 85/125 µm |
| 100/140 µm | |
| 50/125 µm | |
| 62.5/125 µm | |
| 9/125 µm | |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
| 0.05 mil (0 mm) |
