Acerca del producto

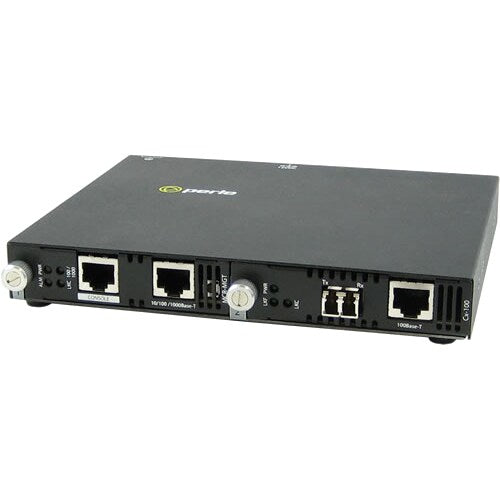

Perle's advanced line of Managed Fast Ethernet Media Converters, transparently connects UTP ethernet copper to multimode or single mode fiber. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
- No hassle of internal installation, install externally
- With Twisted Pair cable, get the desired data transfer rate up to a required distance
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| 100Base-FX | |
| Ethernet Technology | Fast Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 1.59 lb (722 g) |
| Form Factor | External |
| Height | 0.91" (23 mm) |
| Width | 6.89" (175 mm) |
| Depth | 5.71" (145 mm) |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | Yes |
| Number of LC Ports | 1 |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05070324 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SMI-100-M2LC2 |
| Product Name | SMI-100-M2LC2 - Fast Ethernet Standalone IP Managed Media Converter |
| Brand Name | Perle |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 85/125 µm |
| 50/125 µm | |
| 100/140 µm | |
| 62.5/125 µm | |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
