Acerca del producto

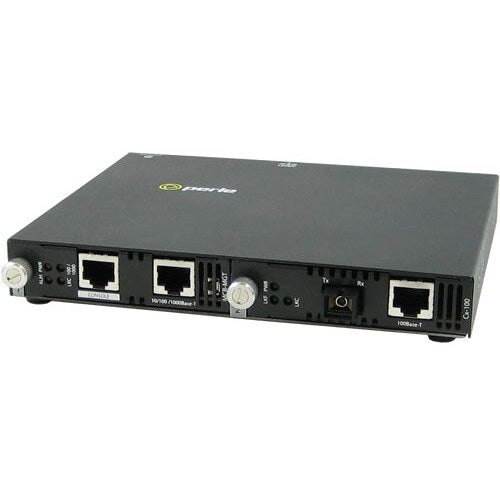

Perle's advanced line of Managed Fast Ethernet Media Converters, transparently connects UTP ethernet copper to multimode or single mode fiber. While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links.
Perle Fast Ethernet Managed Media Converters come standard with extensive cost and time saving features. In addition, a lifetime warranty and free worldwide technical support make Perle's Managed Fast Ethernet Converters the smart choice for IT professionals.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
- The Rack-mountable provides convenient installation
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Especificaciones técnicas
| Power Description | |
| Input Voltage | 12 V DC |
| Network & Communication | |
| Network Technology | 10/100Base-TX |
| 100Base-BX | |
| Ethernet Technology | Fast Ethernet |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
| 0.05 mil (0 mm) | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05071194 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SMI-100-M1SC2U |
| Product Name | SMI-100-M1SC2U - Fast Ethernet IP Managed Media Converter |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 1.59 lb (722 g) |
| Form Factor | Desktop |
| Rack-mountable | |
| Wall Mountable | |
| Rail-mountable | |
| Height | 0.91" (23 mm) |
| Width | 6.89" (175 mm) |
| Depth | 5.71" (145 mm) |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | Yes |
| Digital Audio | No |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
