Acerca del producto
Perle's feature rich Gigabit rate converting PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points.
Perle PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle PoE media converters can also provide power to one or two Powered Devices (PDs). Perle has PoE media converter models that support the IEEE 802.3af PoE standard (15.4W of power) or the IEEE 802.3at PoE+ standard (30W of power).
Perle 10/100/1000 PoE Ethernet to Fiber Converters provide an economical path to extend the distance of an existing network with fiber cabling. At the same time they function as PoE injectors to power devices like IP phones, video conferencing equipment, IP cameras and Wi-Fi devices over copper UTP cabling.
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 1000Base-BX-U technology get up to 1000Mbps data transfer rate over optical fiber cable
- The Rail-mountable provides convenient installation
Especificaciones técnicas
| Media & Performance | |
| Maximum Distance Supported | 20 km |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-BX-U | |
| Interfaces/Ports | |
| Number of PoE (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Total Number of Ports | 2 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05080164 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |

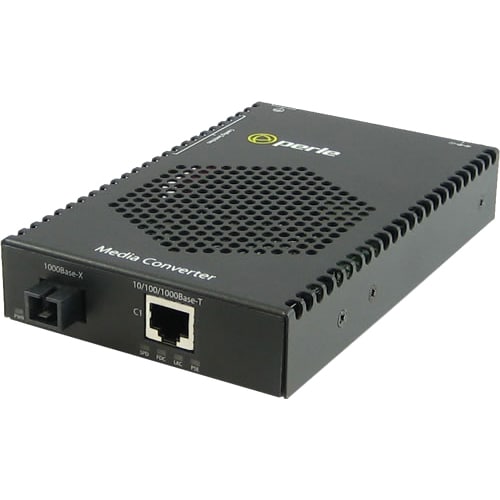

| Product Model | S-1110P-S1SC20U |
| Product Name | S-1110P-S1SC20U Media Converter |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 453.6 g |
| Form Factor | Wall Mountable |
| Rail-mountable | |
| Rack-mountable | |
| Height | 1" (25.40 mm) |
| Width | 3.70" (93.98 mm) |
| Depth | 5.90" (149.86 mm) |
