Acerca del producto

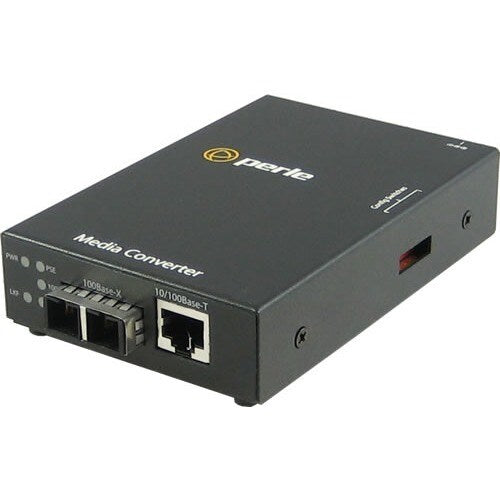

Perle's feature rich Fast Ethernet rate converting PoE Media Converters transparently connect copper to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices such as IP cameras, VoIP phones and wireless access points. S-110 PoE Media Converters are also available with support for Extended Temperature ranges. Over 40 models to choose from with either fixed fiber or SFP ports. The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.
Perle PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that carry Ethernet data, Perle PoE media converters also provide power to Powered Devices (PDs). Perle has PoE media converter models that support the IEEE 802.3af PoE standard (15.4W of power) or the IEEE 802.3at PoE+ standard (30W of power).- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 10/100Base-T technology get up to 100Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
Especificaciones técnicas
| Power Description | |
| Power Source | AC Adapter |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Network & Communication | |
| Network Technology | 100Base-BX-D |
| 10/100Base-T | |
| Ethernet Technology | Fast Ethernet |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05081314 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-110PP-M1ST2D |
| Product Name | S-110PP-M1ST2D Transceiver/Media Converter |
| Brand Name | Perle |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Network (RJ-45) | Yes |
| Management Port | No |
| Number of PoE+ (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Total Number of Ports | 2 |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
| 0.05 mil (0 mm) | |
| Physical Characteristics | |
| Weight (Approximate) | 10.58 oz (300 g) |
| Form Factor | Desktop |
| Rack-mountable | |
| Rail-mountable | |
| Wall Mountable | |
| Height | 1.02" (26 mm) |
| Width | 3.15" (80 mm) |
| Depth | 4.72" (120 mm) |
