Acerca del producto

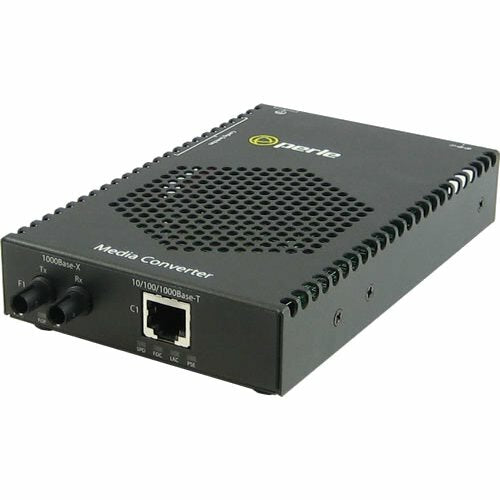

The S-1110P-XT Industrial Temperature PoE Media Converters address the need for transparently connecting 10/100/1000 Ethernet equipment that operate in extreme temperatures to fiber while providing Power over Ethernet ( PoE ) to standards-based PoE and PoE+ compliant devices.
The S-1110P-XT PoE Media Converters will operate in industrial grade temperatures of -40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-1110P-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable
- The Desktop provides convenient installation
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Especificaciones técnicas
| Power Description | |
| Input Voltage | 57 V DC |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-LX/LH | |
| Media & Performance | |
| Maximum Distance Supported | 10 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Single-mode |
| Multi-mode | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05090530 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-1110P-S2ST10-XT |
| Product Name | S-1110P-S2ST10-XT - 10/100/1000 Industrial Temperature PoE Media Converter |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 450 g |
| Form Factor | Desktop |
| Rack-mountable | |
| Rail-mountable | |
| Wall Mountable | |
| Height | 1.02" (26 mm) |
| Width | 5.91" (150 mm) |
| Depth | 3.74" (95 mm) |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of PoE (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
