Acerca del producto

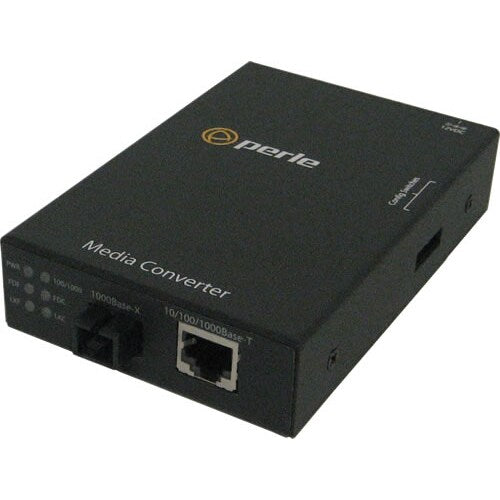

The S-1110-XT Industrial Temperature Media Converters address the need for transparently connecting 10/100/1000 Ethernet equipment that operate in extreme temperatures to fiber optic cable. The S-1110-XT Media Converters will operate in industrial grade temperatures of-40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. Boasting this extended temperature feature along with a rugged steel casing, the S-1110-XT Media Converter provides an economical path to extend the distance between two industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- The Rail-mountable provides convenient installation
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Especificaciones técnicas
| Power Description | |
| Input Voltage | 12 V DC |
| Network & Communication | |
| Network Technology | 1000Base-BX-D |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| Media & Performance | |
| Maximum Distance Supported | 10 km |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Fiber Mode Supported | Single-mode |
| Miscellaneous | |
| Certifications & Standards |
IEEE Standards:
Emissions:
Electrical Safety:
Laser Safety:
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05090740 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | S-1110-S1SC10D-XT |
| Product Name | S-1110-XT 10/100/1000 to Fiber Industrial Temperature Media Converter |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 317.5 g |
| Form Factor | Wall Mountable |
| Rail-mountable | |
| Rack-mountable | |
| Height | 1" (25.40 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 4.70" (119.38 mm) |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of SC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 2 |
| SC Port Type | Simplex |
