Acerca del producto

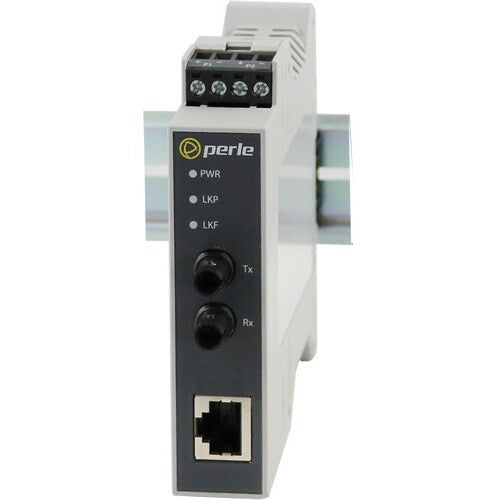

Perle SR-100-XT DIN Rail Media Converters transparently connect UTP copper to fiber in industrial grade operating temperatures -40F to +167F (-40C to +75C). Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be supported by a commercial based media converter. These Fast Ethernet Media Converters are ideal for use with industrial devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.
- Extend the data transmission distance of IP-based devices by connecting their 100Base-TX Copper interface to fiber.
- Extend the distance of an existing industrial network by linking CAT5/6/7 cabling to multimode or single mode fiber.
- Protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
An SR-100-XT Media Converter is also available with an SFP slot.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Remote Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SR-100-XT Fast Ethernet Media Converters the smart choice for IT professionals.
- 100Base-TX to 100Base-X Fiber Media Converters
- Link copper to multimode or single mode fiber
- Dual fiber ST/SC or Single fiber SC connectors
- Extend network distances up to 40km
- -40C to +75C (-40F to +167F) extended operating temperature
- Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Triple Power Input: Dual Terminal block power connector & T-Bus
Especificaciones técnicas
| Power Description | |
| Power Source | AC Adapter |
| Network & Communication | |
| Network Technology | 100Base-TX |
| 100Base-LX | |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 2 |
| Total Number of Ports | 3 |
| ST Port Type | Duplex |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.23 oz (120 g) |
| Form Factor | Rail-mountable |
| Height | 0.89" (22.50 mm) |
| Width | 4.49" (114 mm) |
| Depth | 3.94" (100 mm) |
| Media & Performance | |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 0.05 mil (0 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05091230 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | SR-100-ST20-XT |
| Product Name | SR-100-ST20-XT Transceiver/Media Converter |
| Product Series | SR-100-XT |
| Brand Name | Perle |
