Acerca del producto

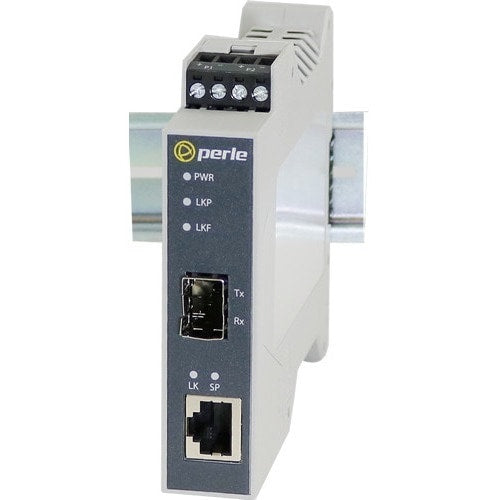

The Perle SRS-1110-SFP DIN Rail Media Converter transparently connects UTP CAT5/6/7 copper to fiber in electric utility and power substation environments. With an extended operating temperature range of -40C to +75C and advanced electrical certifications for IEC 61850-3, IEEE1613 and EN 61000-4-16, these fiber to Ethernet converters meet all requirements necessary to operate safely in the harsh electrical environments associated with power utility and substation deployments.
The SRS Media Converters are also designed to operate in hazardous industrial locations. With numerous certifications, including ATEX Class 1 Zone 2 and ANSI/ISA 12.12.01 Class 1 Division 2, you are ensured safe and reliable operation in locations where flammable gases, liquids or vapors are handled, processed or used.
- Extend the data transmission distance of IP-based devices by connecting their 10/100/1000Base-T copper interface to Fast Ethernet or Gigabit fiber.
- Extend the distance of an existing industrial network by linking CAT5/6/7 cabling to multimode or single mode fiber.
- Extend the distance between two copper-based devices or networks
- Protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber in industrial plants.
The pluggable fiber optics port allows for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make SRS-1110-SFP Rate Converting Media Converters the smart choice for IT professionals.
- 10/100/1000Base-T to 100/1000Base-X Fiber Media Converters
- Empty slot for Cisco and other industry standard SFPs
- Meets IEC 61850-3 & IEEE 1613 electric power substation environmental standards
- Class 1 Division 2 certified for hazardous locations
- Link copper to multimode or single mode fiber
- -40C to +75C (-40F to +167F) extended operating temperature
- Advanced Features: Link Pass-Through, Far-End Fault, Auto-MDIX
- Triple Power Input: Dual Terminal block power connector & T-Bus
Especificaciones técnicas
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1 |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of Ports | 1 |
| Media & Performance | |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| 1000Base-X | |
| Ethernet Technology | Gigabit Ethernet |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.23 oz (120 g) |
| Form Factor | Rail-mountable |
| Height | 0.88" (22.35 mm) |
| Width | 4.50" (114.30 mm) |
| Depth | 3.90" (99.06 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 05092080 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Name | SRS-1110-SFP Transceiver/Media Converter |
| Product Series | SRS-1110-SFP |
| Brand Name | Perle |
