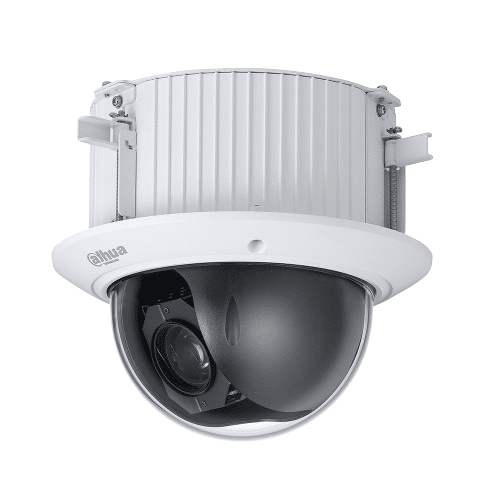

Cámara IP PTZ Dahua de 4 MP COMS 32x para techo de 5 pulgadas, Starlight mejorado, Serie Pro (52C432GBNR)
Cámara IP PTZ Dahua de 4 MP COMS 32x para techo de 5 pulgadas, Starlight mejorado, Serie Pro (52C432GBNR)
Cámara IP PTZ Dahua de 4 MP COMS 32x para techo de 5 pulgadas, Starlight mejorado, Serie Pro (52C432GBNR)
VPN: 52C432GBNR SKU: AT101187
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles
Recently Viewed
Cámara IP PTZ Dahua de 4 MP COMS 32x para techo de 5 pulgadas, Starlight mejorado, Serie Pro (52C432GBNR)
Resumen de información del producto

Acerca del producto
With its precise pan and tilt functions and strong optical zoom, this PTZ camera offers a comprehensive solution for small to medium-sized scenarios. With its Enhanced Starlight technology, it can take incredibly detailed pictures in low light levels of 0.005 lux. The camera can fulfil the security needs of many security applications due to its smooth management and superior protection.
Dahua 4MP CMOS 32x in-ceiling 5-in. IP PTZ, Enhanced Starlight, Pro Series Features:
- 1/2.8-in. 4MP CMOS Sensor
- 4MP (2560 x 1440) at 30 fps Maximum Resolution
- AI Coding, Smart H.265+ and Smart H.264+ Dual Codec
- Powerful 32x Optical Zoom
- Enhanced Starlight Technology for Low-light Applications
- True Wide Dynamic Range (120 dB)
- Analytics+ Function: Perimeter Protection, Upgraded SMD+, Auto-tracking, Face Detection, PFA Technology
- IK10 Vandal Resistance, TVS 6000 V Surge Protection
- Five-year Warranty*
Dahua 4MP CMOS 32x in-ceiling 5-in. IP PTZ, Enhanced Starlight, Pro Series Specifications:
- Camera
- Image Sensor 1/2.8-in. CMOS
- Effective Pixels 2560 (H) × 1440 (V)
- RAM/ROM 1 GB/4 GB
- Scanning System Progressive
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Minimum Illumination
- Color 0.005 lux at F1.6
- B/W 0.0005 lux at F1.6
- Lens
- Focal Length 4.8 mm to 154 mm
- Maximum Aperture F1.6 to F4.0
- Angle of View
- Horizontal 55.8° to 2.3°
- Vertical 31.9° to 1.3°
- Diagonal 63.7° to 2.7°
- Optical Zoom 32x
- Focus Control Automatic, Semi-automatic, Manual
- Iris Control Auto, Manual
- Close Focus Distance 0.1 m to 1.5 m
- DORI1 Distance
- Detect 3,080 m (10,104.99 ft)
- Observe 1,216.6 m (3,991.47 ft)
- Recognize 616 m (2,021.00 ft)
- Identify 308 m (1,010.50 ft)
- Pan/Tilt/Zoom
- Pan/Tilt Range
- Pan 0° to 360° endless
- Tilt 0° to 90°, Automatic Flip 180°
- Manual Control Speed
- Pan 0.1°/s to 350°/s
- Tilt 0.1°/s to 250°/s
- Preset Speed
- Pan 500°/s
- Tilt 500°/s
- Presets 300
- PTZ Mode 5 Patterns, 8 Tours (Up to 32 Presets per Tour), 5 Scans
- Power Up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset/Scan/Tour/Pattern if there is no command in the specified period
- PTZ Protocol DH-SD
- Pan/Tilt Range
- Video
- Video Compression AI Coding, H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG (Sub Stream 1), Smart H.264+
- Streaming Capability Three (3) Streams
- Resolution 4MP (2560 × 1440), 3MP (2048 × 1536), 2304 × 1296, 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480), CIF (352 × 288/352 × 240)
- Frame Rate
- Main Stream 4MP/3MP/1080p/1.3MP/720p at 1 to 30 fps
- Sub Stream 1 D1/CIF at 1 to 30 fps
- Sub Stream 2 1080p/1.3M/720p at 1 to 30 fps
- Bit Rate Control CBR/VBR
- Bit Rate
- H.264 96 to 14,848 Kbps
- H.265 38 to 8,960 Kbps
- Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, True WDR (120 dB), HLC
- White Balance Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp
- Gain Control Auto, Manual
- Noise Reduction 2D, 3D
- Advanced Features Region of Interest (RoI), Electronic Image Stabilization (EIS), Electronic Defog, Motion Detection
- Digital Zoom 16x
- Image Rotation 180°
- Privacy Masking Up to 24 areas (8 areas allowed per view)
- S/N Ratio ? 55 dB
- Audio
- Compression PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723, AAC
- Network
- Ethernet One (1) RJ-45 Port (10/100 Base-T)
- Protocol FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP
- Interoperability CGI, SDK, ONVIF (Profile S, G, T), P2P
- Streaming Method Unicast/Multicast
- Maximum User Access 20 Users (Total Bandwidth 64 Mbps)
- Edge Storage Micro SD Slot (Max. 512 GB), FTP/SFTP, NAS
- Browser Safari (iOS 10 or Later), Microsoft Edge, Google Chrome 41 or Later, Firefox 50 or Later
- Management Software DSS Professional, DMSS
- Mobile Client iOS, Android
- Certifications
- CE EN55032, EN55024, EN50130-4
- FCC Part 15 Subpart B, ANSI C63.4-2014
- UL UL62368-1 + CAN/CSA C22.2, No. 62368-1
- Interface
- Audio
- Input One (1) Channel (LINE IN, bare wire)
- Output One (1) Channel (LINE OUT,bare wire)
- Alarm
- Input Two (2) Channels
- Output One (1) Channel
- Alarm Linkage Capture, Recoding, Send Email, Preset, Tour, Pattern, Alarm Digital Output, Audio
- Alarm Output Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, Ip Conflict Detection, Memory Card State Detection, Memory Space Detection
- Audio
- Electrical
- Power Supply 24 VDC/2.5 A ± 25% (Included) PoE+ (802.3at)
- Power Consumption
- Basic 13 W
- Maximum 16 W (PTZ)
- Environmental
- Operating Temperature –30 °C to 60 °C (–22 °F to 140 °F)
- Operating Humidity ? 95% RH
- Vandal Resistance IK10
- Surge Protection TVS 6000 V
- Construction
- Product Dimensions 176.6 mm × 198.0 mm (6.95 in. × 7.80 in.)
- Net Weight 2.2 kg (4.85 lb)
- Gross Weight 3.7 kg (8.16 lb)
- Analytics+ Functions
- Perimeter Protection Detects human or vehicle violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter.
- Face Detection • Detects and captures a snapshot of a human face in a defined area within a scene.
- Upgraded Smart Motion Detection+
- Differentiates between and classifies human and vehicle objects.
- Filters false alarms due to leaves, lights, animals, and other inconsequential objects.
- Extracts human or vehicle objects from recorded video for quick target search and retrieval.
- Intelligent Video System (IVS) Functions
- Standard Features
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera
- Tripwire A target crosses a user-defined line.
- Intrusion A target enters or exits a defined perimeter.
- Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
- Fast Moving Target exceeds a set speed when exiting a defined area
- Parking Detection Vehicle remains in a defined area without motion for a set period of time.
- People Gathering Specified number of people remain inside a defined area for a set time.
- Vehicle/Human Alarm Classification Detects human or vehicle violations using Tripwire or Intrusion detection methods.
- Linkage Tracking Controls the pan/tilt/zoom actions of the camera to automatically track humans/vehicles in motion and to keep the target in the scene.
- Auto-tracking Controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene.
- Loitering Detection Target is in motion inside a defined area longer than a specified amount of time.
- Standard Features
