Aruba 6300 Switch Series
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation, core and data center top of rack (ToR) deployments. Created for game- changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.
Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today's enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.
A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow's applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization with hotswappable power supplies and fans. Back-to-front airflow available in switch bundle for hot-cold aisle top-of-rack (TOR) and outof-band-management (OOBM) data center deployments.
Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Stack port provides an easy and hassle-free way to extend your office network
- Quickly and easily set up a wired network with 48 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP56 |
| SFP | |
| Number of SFP Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| 50GBase-X | |
| Ethernet Technology | Gigabit Ethernet |
| 50 Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x 50 Gigabit Ethernet Expansion Slot |
| 48 x Gigabit Ethernet Network | |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | JL667A#B2B |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |
| Product Model | 6300F |

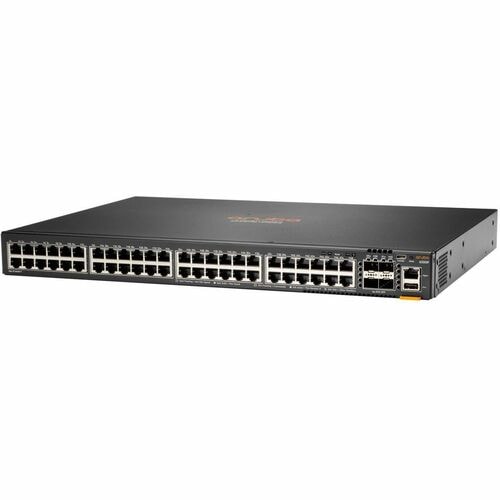

| Product Name | 6300F 48-port 1GbE and 4-port SFP56 Switch |
| Product Series | 6300 |
| Brand Name | HPE |
| Physical Characteristics | |
| Weight (Approximate) | 9.83 lb (4458.812997 g) |
| Form Factor | Surface Mount |
| Rack-mountable | |
| Cabinet Mount | |
| Height | 1.73" (43.94 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 12.90" (327.66 mm) |
| Compatible Rack Unit | 1U |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 74 W |
| Number of Power Supplies Supported | 1 |
| Miscellaneous | |
| Application/Usage | Network |
| Data Center | |
| IP Phone | |
| Enterprise | |
| Campus | |
| Branch Office | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1t |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3at | |
| IEEE 802.3bt | |
| IEEE 802.3bz | |
| IEEE 802.3z | |
| IEEE802.3af | |
| IEEE 802.1s | |
| IEEE 802.1Q | |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.1AX | |
| IEEE 802.1ak | |
| IEEE 802.1ab |
