Acerca del producto

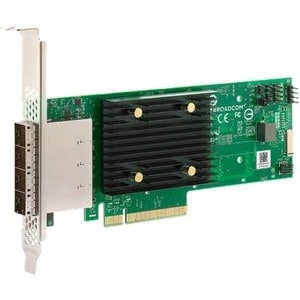

The Lenovo ThinkSystem 440-16e SAS/SATA 12Gb HBA is a high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapter provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.
- PCIe 4.0 x8 host interface
- 12Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3816 IOC design
- PCI low profile, half-length form factor
- 16x 12Gbps SAS/SATA ports for connectivity to 16x internal drives
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs
- Connectivity for up to 1024 external SAS or SATA drives
- Up to 12 Gbps throughput per port: Supports 12, 6, or 3 Gbps SAS speeds, Supports 6 or 3 Gbps SATA speeds
- Four external x4 HD Mini-SAS connectors (SFF-8644)
- Support for external storage systems and tape backup units
- High performance architecture with very deep queue depth
Especificaciones técnicas
| Memory | |
| Cache Memory | No |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Interfaces/Ports | |
| Total Number of SAS Ports | 4 |
| Number of SAS Ports (External) | 4 |
| SAS Connector Details | Four external x4 HD Mini-SAS connectors (SFF-8644) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Device Supported | Server |
| RAID Levels | JBOD |
| Controller Type | 12Gb/s SAS |
| RAID Supported | No |
| General Information | |
| Product Type | SAS Controller |
| Manufacturer Part Number | 4Y37A09724 |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 440-16e |
| Product Name | ThinkSystem 440-16e SAS/SATA PCIe Gen4 12Gb HBA |
| Brand Name | Lenovo |
