Acerca del producto

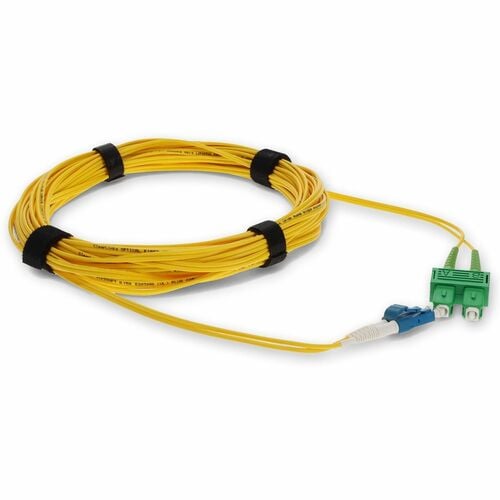

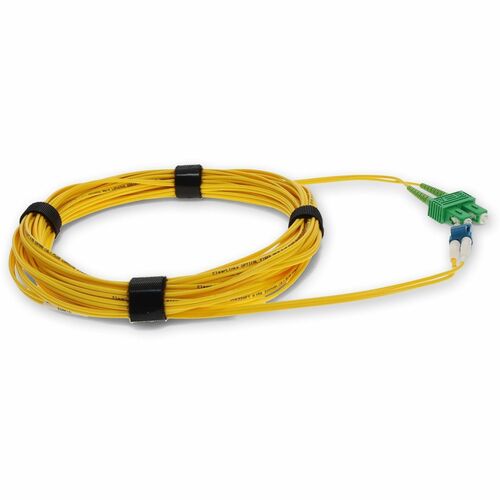

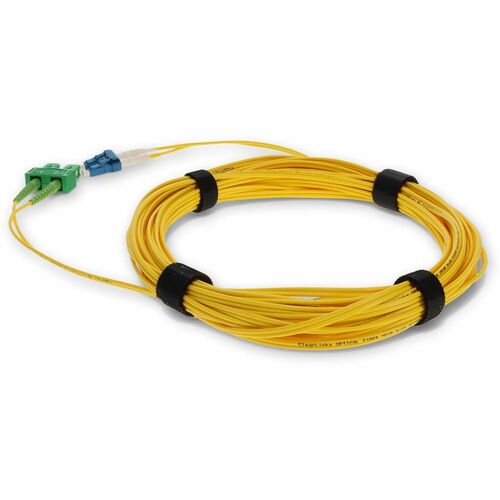

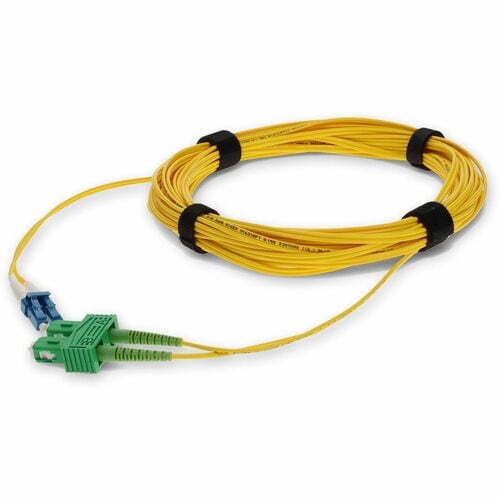

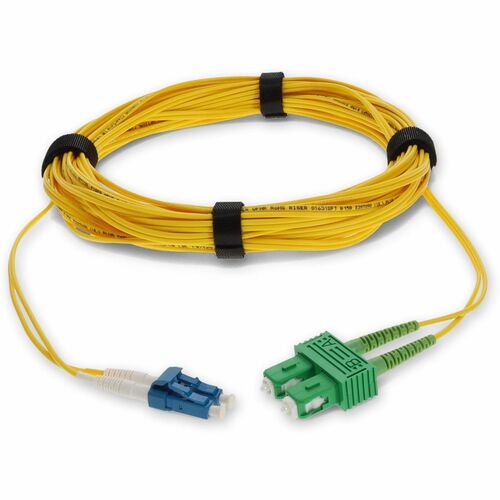

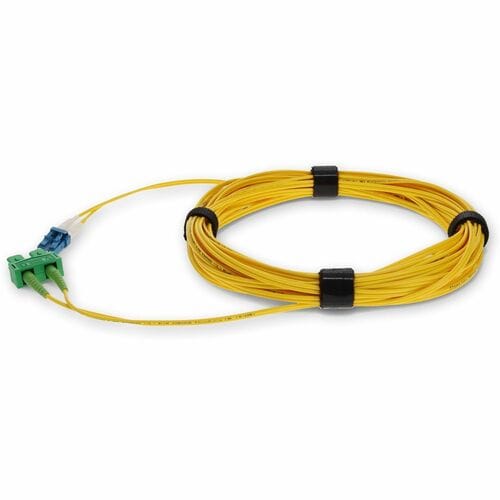

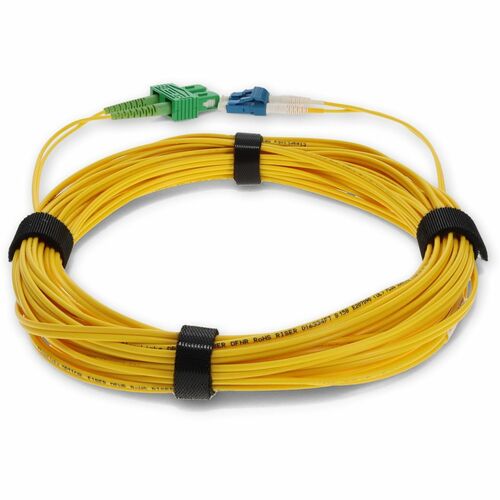

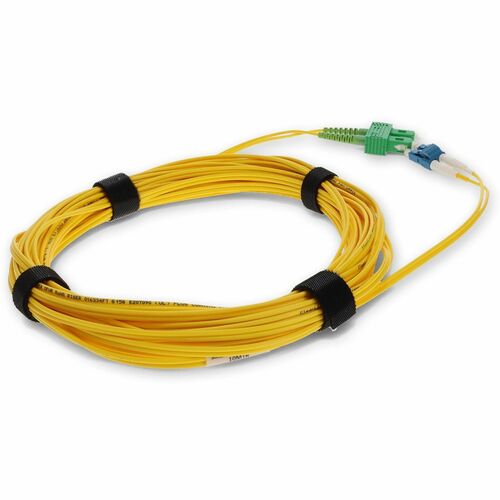

This is a 3.0m (9.8ft) ASC (male) to LC (male) yellow OS2 Duplex riser-rated patch straight cable that is used for high speed data transfer. OS2 is a standard single-mode optical fiber commonly used with wavelengths of 1310nm and 1550nm (9/125 microns), and has a maximum attenuation of 1dB/km. The OS2 standard is defined in ISO/IEC 11801. This riser (OFNR) cable is best suited for use in interior fiber-optic applications. Duplex cabling provides two-strands of fiber and is most commonly used in applications that utilize one lane to transmit and one lane to receive. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.
- Features Angled Connector
- Features Fiber Optic cable type
- Fully compatible with network devices
- For exceptional quality, upright compatibility and reliability use this Network Cable
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| TAA Compliant | No |
| Physical Characteristics | |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Low Smoke Zero Halogen | |
| Product Color | Yellow |
| Color Family | Yellow |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | ADD-ASC-LC-3M9SMF |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1.0 |
| Manufacturer | AddOn |
| Product Name | 3m SMF 9/125 Duplex (APC-SC/LC) ASC/LC OS1 Yellow LSZH Patch Cable |
| Brand Name | AddOn |
| Technical Information | |
| Cable Length | 9.8 ft |
| Device Supported | Network Device |
| Jacket Type | LSZH |
| OFNR | |
| Riser | |
| Shielding | No |
| Features | Angled Connector |
| Molded | |
| Angled Physical Contact (APC) | |
| Cable Characteristic | Patch Cable |
| Cable Type | Fiber Optic |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | SC Network - Male |
| Fiber Optic Mode | Single-mode |
| Cable Configuration | Straight-through |
| Fiber Type | Duplex |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x SC Network - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Fiber Category | OS2 |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
