Acerca del producto

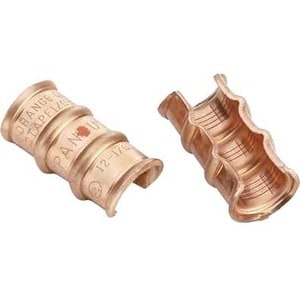

The CTAPF2-12-C Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL486 for use up to 35 kv and temperature rated 90°c when crimped with Panduit and specified competitor crimping tools and dies.
- For copper-to-copper tapping, splicing or pigtailing
- Wide wire range-taking capability minimizes inventory requirements
- Color-coded for proper crimp die selection
- Ribbed design provides high strength
- Made from high conductivity wrought copper
- UL Listed and CSA Certified to 600 V and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
Especificaciones técnicas
| Miscellaneous | |
| Compatibility |
|
| Physical Characteristics | |
| Thickness | 78.74 mil (2 mm) |
| Length | 1.25" (31.80 mm) |
| Width | 1.25" (31.80 mm) |
| Product Material | Copper |
| General Information | |
| Product Type | Grounding Connector |
| Manufacturer Part Number | CTAPF2-12-C |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer | PANDUIT CORP |
| Product Name | CTAPF2-12-C Copper Compression Tap (100 pcs) |
| Product Line | StructuredGround |
| Brand Name | Panduit |
