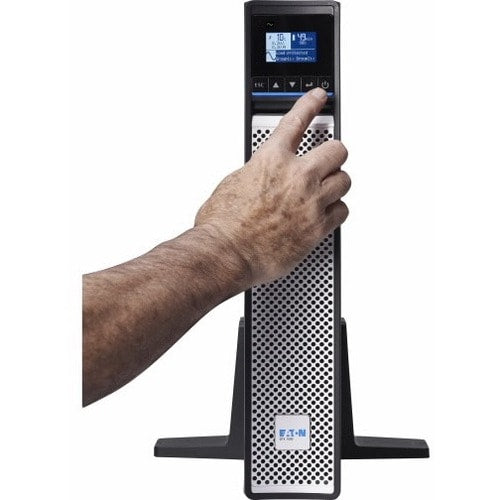

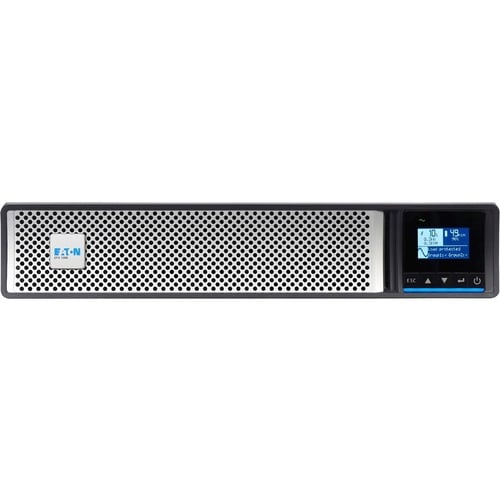

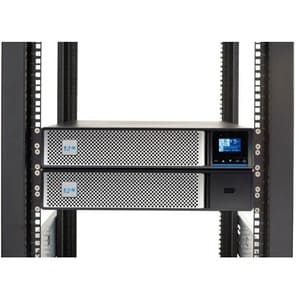

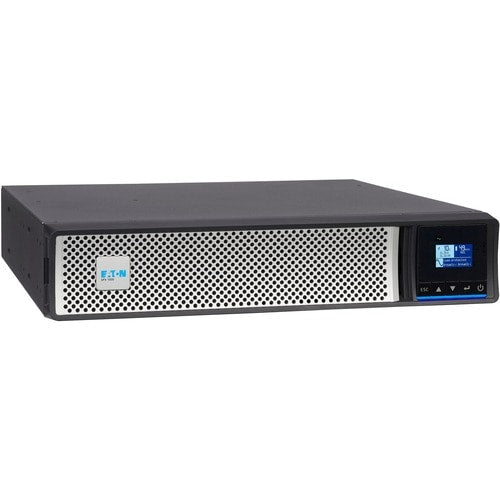

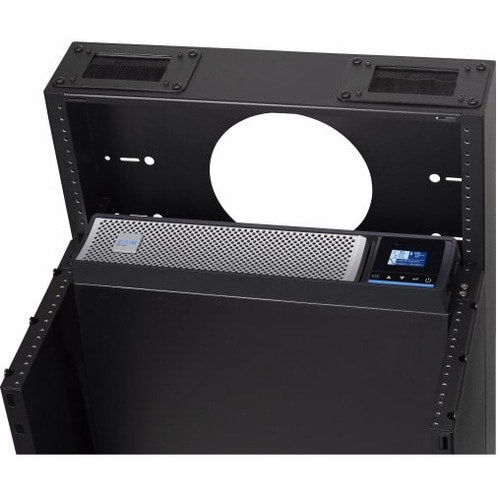

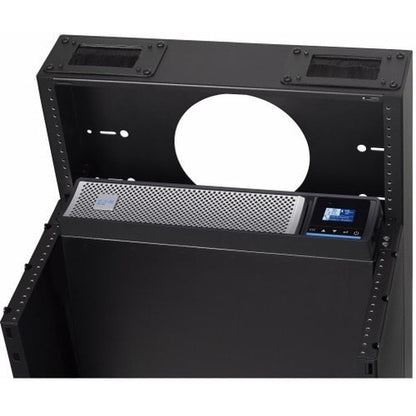

SAI Eaton 5PX G2 - Montaje en rack 2U - 6 minutos de espera - Entrada de 120 V CA
SAI Eaton 5PX G2 - Montaje en rack 2U - 6 minutos de espera - Entrada de 120 V CA
- Protege los equipos contra apagones, caídas de tensión, sobretensiones transitorias y ruido en la línea.
- Mantiene el equipo en funcionamiento durante las interrupciones para permitir tiempo para guardar archivos y realizar un apagado seguro.
- El factor de potencia unitario garantiza la máxima potencia posible en cada clasificación de potencia.
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles








Recently Viewed
SAI Eaton 5PX G2 - Montaje en rack 2U - 6 minutos de espera - Entrada de 120 V CA
Resumen de información del producto

Acerca del producto
1.4kVA/1.4kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This 5PX G2 rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The 5PX1500RTNG2 is ideal power management for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

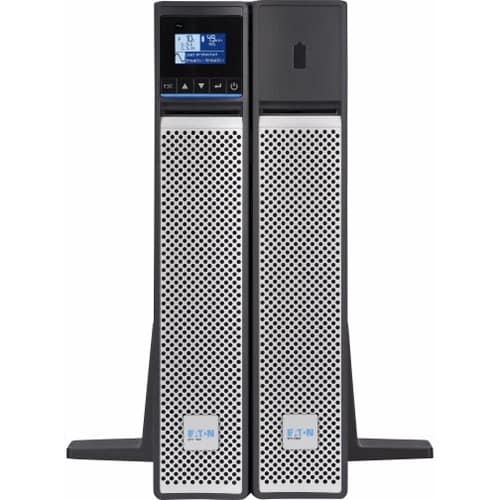

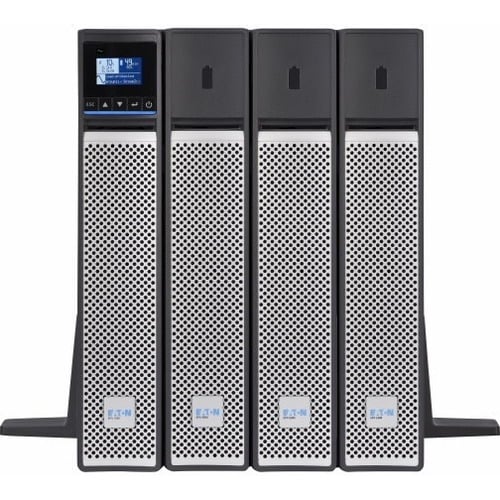

The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (5PXEBM48RTG2, sold separately) for hours of extended runtime.
Included Gigabit Network Interface Offers 24/7 Remote Access
The Network-M3 network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the Network-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

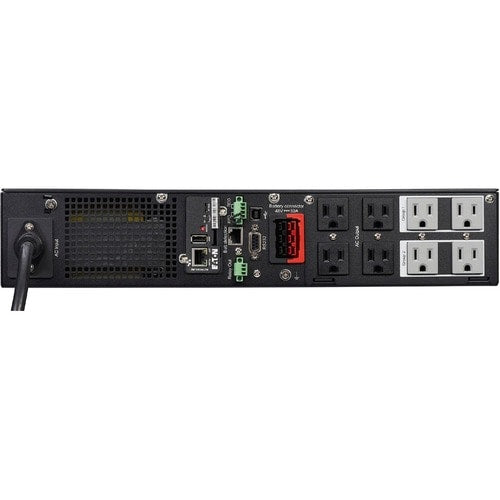

NEMA 5-15R Outlets Protect Your Connected Components
Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Unity power factor ensures maximum power possible at each power rating
- ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
- Included Gigabit network card enables full remote access and management 24/7
Especificaciones técnicas
Controls/Indicators | |

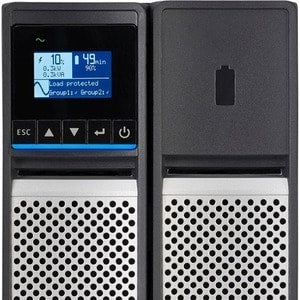

Status Indicators | LCD Graphical Display |
Interfaces/Ports | |
USB (HID Compliant) Port | Yes |
Management | |
Network Management | Network-M3 Card |
Battery Information | |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 6 Minute |
Battery Characteristics | Sealed |
Replaceable Battery | Yes |
Power Description | |
Input Voltage | 120 V AC |
Input Frequency | 60 Hz |
Load Capacity (VA) | 1.44 kVA |
Load Capacity (Watt) | 1.44 kW |
Miscellaneous | |
Package Contents |
|
Country of Origin | Philippines |
Environmentally Friendly | Yes |
Energy Star | Yes |
Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
Restriction of Hazardous Substances (RoHS) | |
General Information | |
Product Type | Line-interactive UPS |
Manufacturer Part Number | 5PX1500RTNG2 |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Name | 5PX G2 UPS |
Product Series | 5PX G2 |
Brand Name | Eaton |
Physical Characteristics | |
Weight (Approximate) | 50.70 lb (22997.13 g) |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 3.40" (86.36 mm) |
Width | 17.20" (436.88 mm) |
Depth | 17.60" (447.04 mm) |
Product Color | Black |
Color Family | Black |
Technical Information | |
Application/Usage | Bank |
Business | |
Enterprise | |
IT Equipment | |
Network Equipment | |
Retail Building | |
Server | |
Storage System | |
Switch | |
Telecommunication | |
VoIP | |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 8 x NEMA 5-15R |
