Acerca del producto

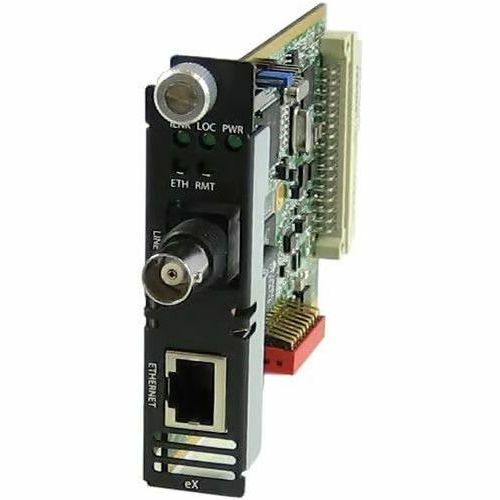

eX-1C110-BNC Fast Ethernet Extender Module. 1 port 10/100Base-TX (RJ-45). BNC ( Coax ) Interlink ( VDSL2 ) connector.
Installed in the MCR200 or MCR1900 Modular Chassis System, Perle Ethernet Extender Modules enable data transmission up to 10,000 feet ( 3 KM ). Use single twisted pair ( CAT5/6/7 ), coax or any existing copper wiring previously used in alarm circuits, E1/T1 circuits, RS-232, RS-422, RS-485, CCTV and CATV applications.
Especificaciones técnicas
| Miscellaneous | |
| Compatibility | MCR200 or MCR1900 Modular Chassis System |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Technical Information | |
| Maximum Operating Distance | 9842.52 ft (3000000 mm) |
| Maximum Data Transfer Rate | 12.50 MB/s |
| General Information | |
| Product Type | Network Extender |
| Manufacturer Part Number | 06003570 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Name | eX-1C110-BNC Ethernet Extender |
| Brand Name | Perle |
