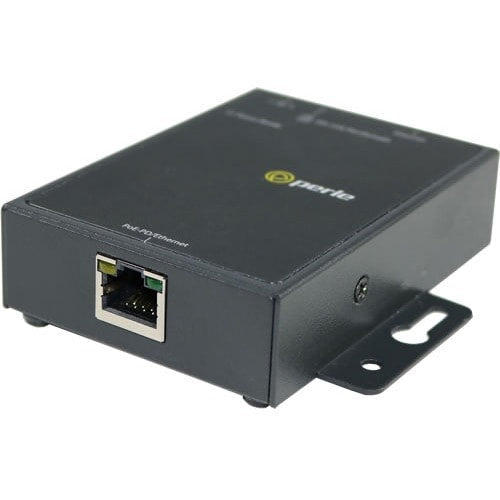

eR-S1110 Ethernet Repeater and Rate Converter: 2 x 10/100/1000Base-T (RJ45) ports. Auto-sensing and rate converting. Extend existing Ethernet cable length by 100m (300ft). 802.3af Power over Ethernet (PoE) compliant PD. AC power adapter included.
The eR-S1110 Ethernet Repeater extends network distances an additional 100m / 328ft over 4-wire twisted pair (CAT5/6/7). You can also perform rate conversion between 10/100/1000 Mbps network links.
The eR-S1110 Repeater can also operate as a Powered Device (PD) under IEEE 802.3af supporting end-span and mid-span power sources (PSE). This makes it ideal for organizations that need to deploy equipment in locations that are difficult or too costly to have separate AC power installed such as ceilings, walls and kiosks.
Especificaciones técnicas
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Network Technology | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 2 |
| Power Description | |
| Input Voltage | 120 V DC |
| 230 V DC | |
| Power Source | AC Adapter |
| General Information | |
| Product Type | Network Repeater |
| Manufacturer Part Number | 06005324 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Name | eR-S1110 Ethernet Repeater |
| Product Series | eR-S1110 |
| Brand Name | Perle |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | Emissions:
Electrical Safety:
|
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Weight (Approximate) | 8.11 oz (230 g) |
| Form Factor | Wall Mountable |
| Panel Mount | |
| Rail-mountable | |
| Height | 0.87" (22 mm) |
| Width | 3.54" (90 mm) |
| Depth | 2.52" (64 mm) |
