Acerca del producto

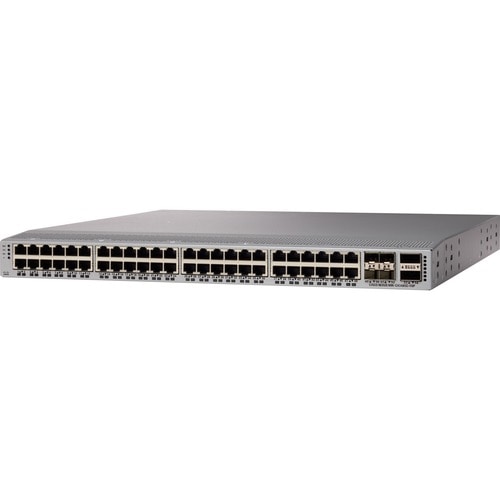

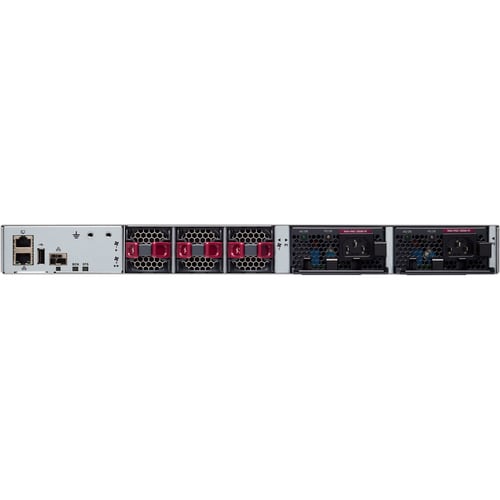

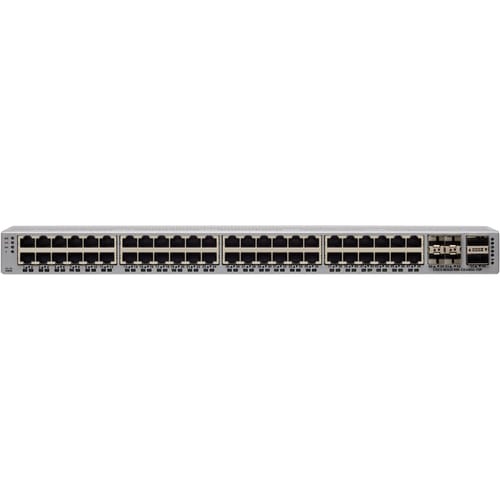

The Cisco Nexus 9348GC-FXP Switch is a 1RU switch that supports 696 Gbps of bandwidth and over 250 mpps. The 48 1GBASE-T downlink ports on the 9348GC-FXP can be configured to work as 100-Mbps, 1-Gbps ports. The 4 ports of SFP28 can be configured as 10/25-Gbps and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports. The Cisco Nexus 9348GC-FXP is ideal for big data customers that require a Gigabit Ethernet ToR switch with local switching.
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 48 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| I/O Expansions | |
| Expansion Slot Type | SFP28 |
| QSFP28 | |
| Total Number of Expansion Slots | 6 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x 25 Gigabit Ethernet Expansion Slot |
| 48 x Gigabit Ethernet Network | |
| 2 x 100 Gigabit Ethernet Expansion Slot | |
| Physical Characteristics | |
| Weight (Approximate) | 14.20 lb (6441.01 g) |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 19.70" (500.38 mm) |
| Compatible Rack Unit | 1U |
| Media & Performance | |
| Network Technology | 25GBase-T |
| 100GBase-X | |
| 10/100/1000Base-T | |
| Ethernet Technology | 25 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| -60 V DC | |
| -48 V DC | |
| Power Source | Power Supply |
| Power Consumption | 178 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | N9K-C9348GC-FXP |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | 9348GC-FXP |
| Product Name | Nexus 9348GC-FXP Ethernet Switch |
| Product Line | Nexus |
| Product Series | 9300 |
| Brand Name | Cisco |
