Cat 6 UTP Patch Cords have a thin profile to accommodate conventional and high-density panels and switches. They include a tiny plug and boot. Patch cords with snagless plugs are a great option for situations with frequent moves, additions, and modifications. A shorter boot means a reduced installed bend radius, which is perfect for spaces-constrained applications.

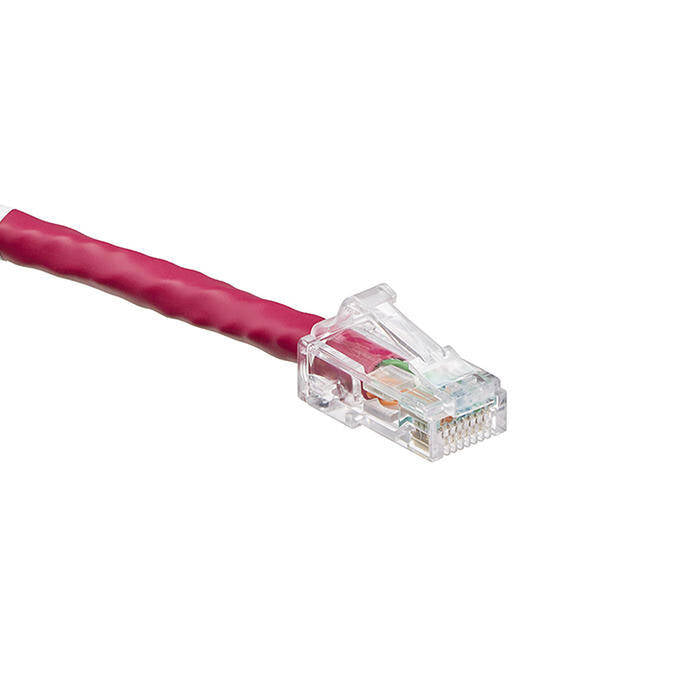

Cat 6 UTP Patch Cord, 7 ft Red Features:
- Tested and verified to meet Cat 6 component requirements for TIA, ISO/IEC, and EN standards
- Compact plug and boot promotes shorter installed bend radius, ideal for limited depth applications
- Snagless plug design prevents tab breakage
- Integrated strain-relief
- Stranded conductor for longer flex-life
- T568B wiring to function in either T568A or T568B applications
- All patch cords are backwards compatible with earlier ANSI/TIA category ratings
- Channel performance verified by third-party testing in 4-connector, 100-meter channel
- Accepts clip-on coloured boot markers for network identifications
- Compatible with Leviton's Secure RJ system
Cat 6 UTP Patch Cord, 7 ft Red Specifications:
- STANDARDS & REGULATIONS
- ANSI/TIA-568.2-D (Cat 6)
- ISO/IEC 11801-1 (Cat 6)
- EN 50173-1 (Cat 6)
- ANSI/TIA-1096-A (formerly FCC Part 68)
- UL 444 CM Rated
- IEEE 802.3bt PoE Type 1, 2, 3, 4 (90 watts max)
- Cisco UPOE, UPOE+ (90 watts max)
- Power over HDBaseT™ PoH (95 watts max)
- For 100 watt applications - Up to 100 cables in a bundle
- cULus Listed (UL 1863)
- RoHS 3
- MECHANICAL SPECIFICATIONS
- Dimensions: Cat 6 UTP Patch Cord, 7 feet (2.1 m)
- Outer Diameter: 0.225
- Materials: 24 AWG UTP stranded conductor, modular non-keyed, 8-position, 8-conductor plug, 94V-0 rated
- Stocked Colors: White, yellow, red, blue, green, gray, black
- Temperature (Storage): -20 °C to +70 °C
- Temperature (Installation): 0 °C to +50 °C
- Temperature (Operating): -20 °C to +60 °C
