Power equipment UPS
Expected delivery 3 to 7 business days (exceptions applied)
Lenovo

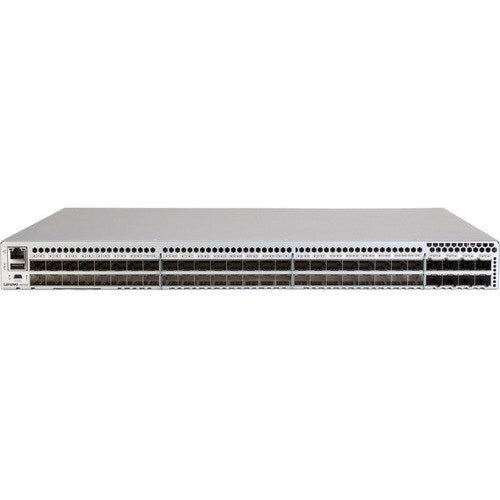

TS DB720S 24 PUERTOS ACTIVO CON 64 GB SWL SFP S 2PS PUERTO ESCAPE LATERAL NC/NR
TS DB720S 24 PUERTOS ACTIVO CON 64 GB SWL SFP S 2PS PUERTO ESCAPE LATERAL NC/NR
- Proporciona alta escalabilidad en un conmutador 1U ultradenso con hasta 56 puertos, proporcionando hasta 64 conexiones con el uso de transceptores SFP-DD, para soportar virtualización de servidores de alta densidad, arquitecturas de nube y entornos de almacenamiento basados en flash.
- Aumenta la escalabilidad mediante el uso de transceptores SFP-DD que proporcionan conexiones SN duales, lo que permite a las organizaciones conectar más servidores, almacenamiento o conmutadores en un espacio reducido. Cada transceptor admite dos conexiones independientes de Fibre Channel de 64 G mediante una interfaz eléctrica de dos carriles.
- Acelera cargas de trabajo críticas con enlaces de 64 Gb/s
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles
Recently Viewed
TS DB720S 24 PUERTOS ACTIVO CON 64 GB SWL SFP S 2PS PUERTO ESCAPE LATERAL NC/NR
Resumen de información del producto

Acerca del producto
The Lenovo ThinkSystem DB720S Gen 7 FC SAN Switch, with its unmatched 64Gbps performance and industry-leading port density, provides a building block that supports data growth, demanding workloads, and data-center consolidation. With a 50% latency reduction compared to the previous generation, the DB720S Switch enables the maximum performance of NVMe storage.
- Provides high scalability in an ultra-dense, 1U switch with up to 56 ports, providing up to 64 connections with the use of SFP-DD transceivers, to support high-density server virtualization, cloud architectures, and flash-based storage environments.
- Increases scalability by using SFP-DD transceivers that provide dual SN connections that allow organizations to connect more servers, storage, or switches in a small footprint. Each transceiver supports two independent connections of 64G Fibre Channel via a two-lane electrical interface.
- Accelerates critical workloads with 64Gb/s links
- Maximizes performance of NVMe storage with 50% lower switching latency than Gen 6
- Enables pay-as-you-grow scalability from 24 to 64 ports-for on-demand flexibility
- Safeguards mission-critical workloads from vulnerabilities with Gen 7 integrated security.
- Provides cyber-resiliency with integrated security technology that protects mission-critical operations by validating the integrity of Gen 7 hardware and software.
- Guarantees critical application performance by automatically prioritizing traffic and avoiding congestion with Brocade Traffic optimizer.
- Simplifies troubleshooting by identifying and isolating issues
- Collects comprehensive telemetry data across the fabric to enable powerful analytics
Especificaciones técnicas
Management & Protocols | |
Manageable | Yes |
Miscellaneous | |
Package Contents |
|
Warranty | |
Additional Warranty Information | Three-year customer-replaceable unit limited warranty with 9x5 next business day parts delivered. Three-year software/firmware entitlement. |
Media & Performance | |
Data Transfer Rate | 64 Gbit/s |
Ethernet Technology | Gigabit Ethernet |
I/O Expansions | |
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 24 |
Total Number of Expansion Slots | 24 |
Power Description | |
Plug/Connector Type | IEC 309 C14 |
Redundant Power Supply | Yes |
Maximum Power Supply Wattage | 350 W |
Interfaces/Ports | |
Number of Fibre Channel Ports | 24 |
Number of Network (RJ-45) Ports | 1 |
Total Number of Ports | 24 |
Number of Active Ports | 24 |
Physical Characteristics | |
Weight (Approximate) | 15.81 lb (7170 g) |
Form Factor | Rack-mountable |
Height | 1.73" (44 mm) |
Width | 17.32" (440 mm) |
Depth | 14.02" (356 mm) |
Compatible Rack Unit | 1U |
General Information | |
Product Type | Fibre Channel Switch |
Manufacturer Part Number | 7D5JA001WW |
Manufacturer Website Address | http://www.lenovo.com |
Manufacturer | Lenovo Group Limited |
Product Model | DB720S Gen7 |
Product Name | ThinkSystem DB720S Gen7 FC SAN Switch |
Brand Name | Lenovo |
