Acerca del producto

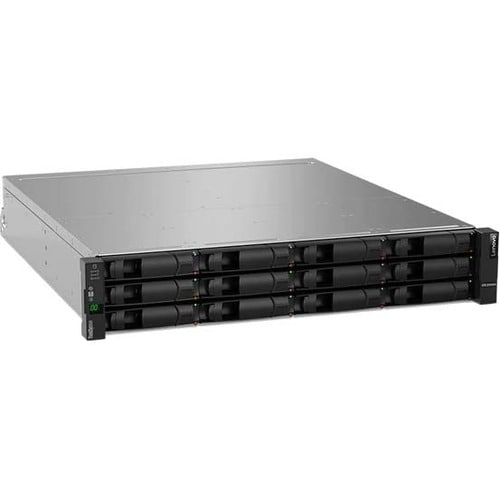

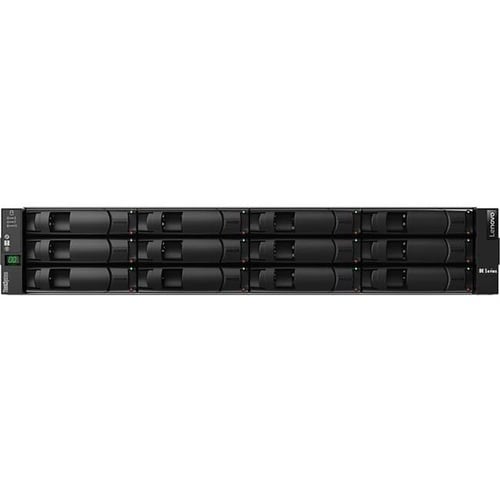

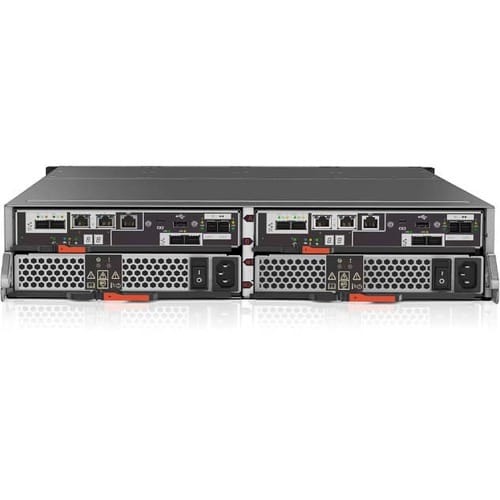

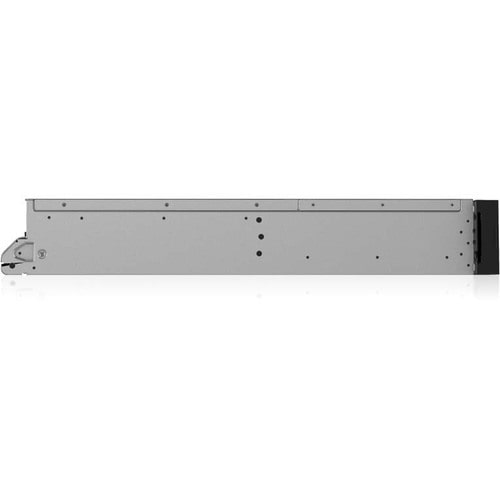

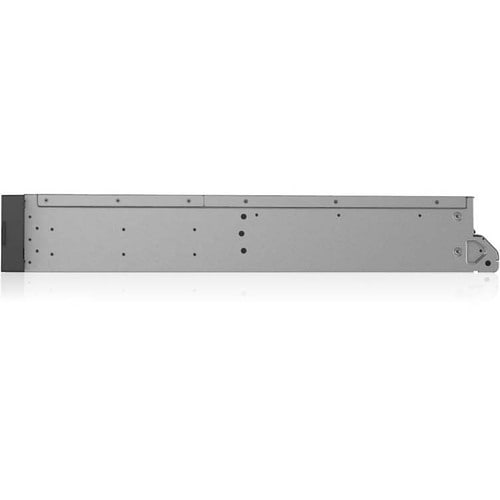

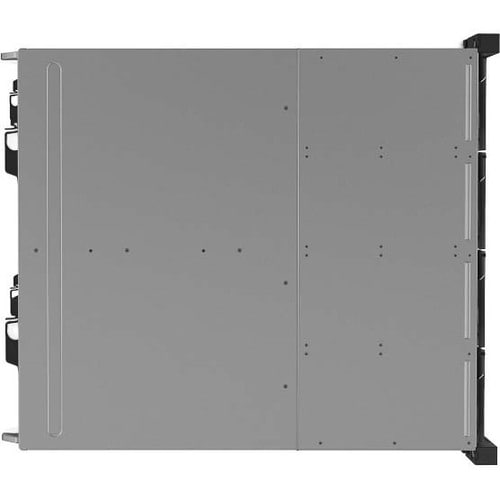

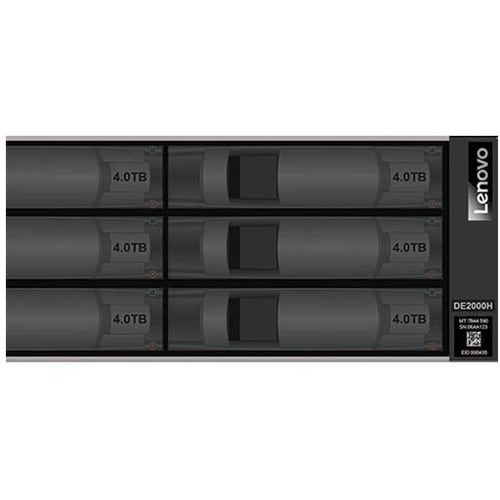

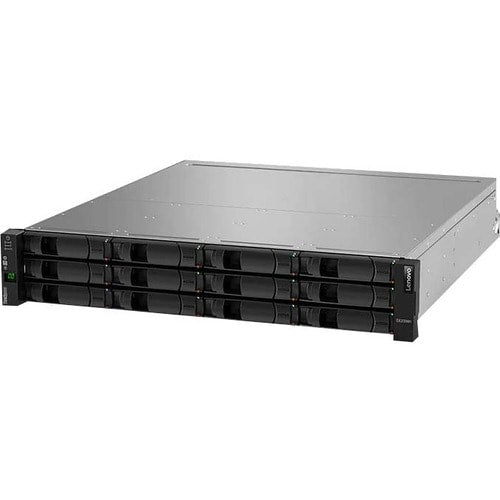

Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE2000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE2000H Hybrid Storage Array and consider its use in their solutions.
- Featuring Gigabit Ethernet port for ultra-fast network speeds
- Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
Especificaciones técnicas
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD) parts delivered. |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| "Number of 3.5"" Bays" | 12 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Controllers | |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Controller Type | 12Gb/s SAS |
| Number of Controllers | 2 |
| RAID Supported | Yes |
| Power Description | |
| Plug/Connector Type | C14 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 913 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.35" (85 mm) |
| Width | 17.60" (447 mm) |
| Depth | 19.02" (483 mm) |
| Storage | |
| Number of Hard Drives Supported | 12 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | 0 |
| SSD Cache Capacity | 16 GB |
| Interfaces/Ports | |
| Host Interface | 12Gb/s SAS |
| Fibre Channel | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of SAS Ports (External) | 4 |
| Management & Protocols | |
| Protocols | SSL |
| SSH | |
| SNMP | |
| SMI-S | |
| LDAP | |
| FCP | |
| General Information | |
| Product Type | DAS/SAN Storage System |
| Manufacturer Part Number | 7Y701008NA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | DE2000H |
| Product Name | ThinkSystem DE2000H DAS/SAN Storage System |
| Product Line | ThinkSystem |
| Product Series | DE |
| Brand Name | Lenovo |
