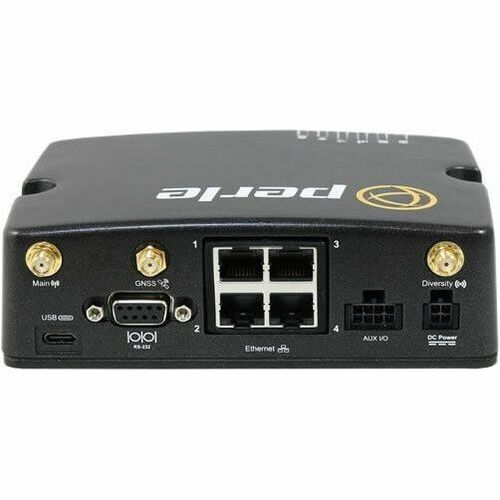

Perle IRG5500 LTE Routers and Gateways have the most comprehensive set of features, functionality, and performance to provide primary or failover back-up connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers, with dual-SIM slots, also have models with WLAN capabilities making them a single network point of contact for fast deployments. And, there is no need for training because an IRG5500 Router comes with an intuitive web GUI. For advanced admin scrips, CLI commands are also available.
Perle IRG5500 Routers provide fast, secure, and reliable managed LTE network connectivity where wired options are impossible to deploy or require a backup. This is crucial for enabling a wide range of applications while ensuring the highest degree of security to protect the integrity of critical services. Reduce the cost of downtime and service calls, and bringing distributed sites online faster. With support for Data, SMS, Voice, and Video, an IRG5500 and can be integrated into any enterprise cloud, building, industrial, or mobile location network infrastructure.
- Building and process automation controllers, Internet of Things (IoT)
- Smart grid assets (meters, switches, controllers), Telco infrastructure controllers
- SCADA, Distribution management systems, Remote data loggers, flow meters, sensing equipment
- Digital signage, ATMs, POS, Kiosks, Temporary "pop-up" stores
- Video surveillance controllers, IP cameras, Mobile hotspots
- Fleet management, GPS/GNSS Location tracking, Taxis, Public Service Vehicles, vehicle area networking (VAN)
- Public Service Vehicles, First responders, Command Centers
- Transit systems, Buses, Metro Subways, Railways
Cellular Band Operation Certified Worldwide over 4G LTE, DC-HSPA+, HSPA+, HSPA, and UMTS (WCDMA)
Perle IRG5500 Routers and Gateways have three cellular options to ensure support for your carrier's primary bands in deployment areas:
- IRG5500+:LTE-A PRO CAT12. 600Mbps downlink and 150Mbps uplink speeds. Support for 24x LTE Bands and 9x UMTS/WCDMA Bands
- IRG5500:LTE-A CAT6. 300Mbps downlink and 50Mbps uplink speeds. Support for 15x LTE Bands and 6x UMTS/WCDMA Bands
- IRG5500+ FN: FirstNet Ready™ support for Band 14 (B14). LTE-A PRO CAT12. 600Mbps downlink and 150Mbps uplink speeds. Support for 24x LTE Bands and 8x UMTS/WCDMA Bands
Especificaciones técnicas
| Storage | |
| Flash Memory Capacity | 4 GB |
| Interfaces/Ports | |
| USB | Yes |
| Number of Network (RJ-45) Ports | 4 |
| USB Standard | USB 3.2 Type C |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 3 |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Network & Communication | |
| VPN Supported | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Mini |
| Technical Information | |
| Standard Memory | 1 GB |
| Processor Speed | 1.20 GHz |
| Processor Type | Cortex A53 |
| Memory Technology | DDR4 SDRAM |
| Processor Core | Dual-core (2 Core) |
| General Information | |
| Product Type | Wireless Router |
| Manufacturer Part Number | 08000064 |
| Manufacturer Website Address | http://www.perle.com |
| Manufacturer | Perle Systems, Inc |
| Product Model | IRG5540+ |
| Product Name | IRG5540+ Wireless Router |
| Product Series | IRG5500 |
| Brand Name | Perle |
| Physical Characteristics | |
| Weight (Approximate) | 1.30 lb (589.67 g) |
| Form Factor | Wall Mountable |
| DIN Rail Mountable | |
| Desktop | |
| Panel-mountable | |
| Height | 1.77" (44.96 mm) |
| Width | 5.75" (146.05 mm) |
| Depth | 3.89" (98.81 mm) |
| Product Material | Die-cast Aluminum |
| Wireless Specifications | |
| Broadband Transmission Technology | Cellular |
| Ethernet | |
| Cellular Data Connectivity Technology | UMTS |
| LTE Advanced | |
| HSPA+ | |
| HSPA | |
| DC-HSPA+ | |
| Cellular Generation | 4G |
| Cellular Network Supported | WCDMA 850 |
| WCDMA 900 | |
| LTE 1500 | |
| LTE 1700 | |
| LTE 1800 | |
| LTE 1900 | |
| LTE 2300 | |
| LTE 2100 | |
| WCDMA 2100 | |
| WCDMA 1900 | |
| WCDMA 1800 | |
| WCDMA 1700 | |
| LTE 900 | |
| LTE 850 | |
| LTE 2600 | |
| LTE 700 | |
| LTE 800 |
