Panel de fibra precargado Tripp Lite by Eaton N48M-4M3X8M-10 - 1U de alto - Aguamarina - 19"

Name: Panel de fibra precargado Tripp Lite by Eaton N48M-4M3X8M-10 - 1U de alto - Aguamarina - 19"
Brand: Tripp Lite
SKU: CB830794
Price: 3296.96 CAD
Availability: OutOfStock

$3,296.96 CAD

~~$3,692.60 CAD~~ $3,296.96 CAD

-10% OFF Agotado

Los gastos de envío se calculan en la pantalla de pago.

Panel de fibra precargado Tripp Lite by Eaton N48M-4M3X8M-10 - 1U de alto - Aguamarina - 48,26 cm de ancho - Montaje en rack

VPN: N48M-4M3X8M-10 SKU: CB830794 CPU: 37332264015

4 cables multimodo OM4 de 24 fibras MTP/MPO-PC vienen enrollados en el interior para un uso instantáneo
Utilice sólo el cable que necesite; guarde el resto en el interior para evitar el desorden.
La longitud flexible del cable permite la reutilización de los cables si se mueve el equipo

Bloque de texto

Cantidad

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Resumen de información del producto

Panel de fibra precargado Tripp Lite by Eaton N48M-4M3X8M-10 - 1U de alto - Aguamarina - 19"

Acerca del producto

1U panel comes preloaded with spools of multimode fiber cable that allow you to extend the exact length required and store the excess out of sight.

Description
Preloaded Fiber Panel, 1U - 4x (3x8F MTP/MPO-PC F/F) 24F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

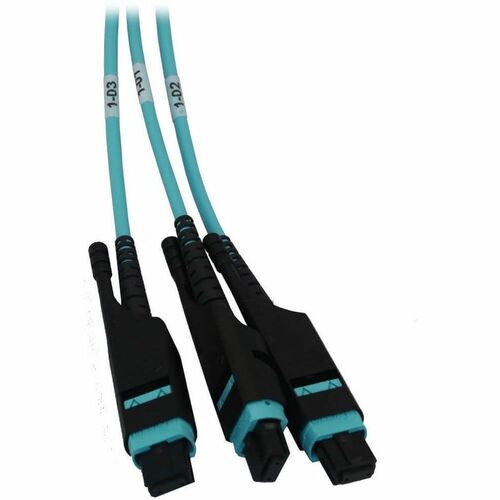

4 MTP/MPO-PC 24-fiber OM4 multimode cables come coiled inside for instant use
Use only as much cable as you need; store the remainder inside to avoid clutter
Flexible cable length allows reuse of cables if equipment is moved
Aluminum chassis mounts into 1U of space in EIA-standard 19 in. racks

Especificaciones técnicas

Miscellaneous
Additional Information	OVERVIEW Technology MTP/MPO; Multimode Optical Mode OM4 Panel Cable Number 4 Panel Cable Length (m) 10 Mode Type Multimode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 50 Primary Coating Diameter (micron) 245 Number of Fibers 24 Cable Length (ft.) 32.8 Cable Length (m) 10.00 Cable Length (in.) 393.7 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1300nm; 850nm Attenuation @ 850NM 3.0dB/KM Attenuation @ 1300NM 1.0dB/KM Insertion Loss 0.35dB
Package Contents	N48M-4M3X8M-10 Preloaded Fiber Panel 4 x MTP/MPO-PC to MTP/MPOPC Trunk Cables, 10 m (32.8 ft.) Installation Guide
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	Network Patch Panel
Manufacturer Part Number	N48M4M3X8M10
Manufacturer Website Address	https://tripplite.eaton.com/
Manufacturer	Eaton Corporation
Miscellaneous
Additional Information	OVERVIEW Technology MTP/MPO; Multimode Optical Mode OM4 Panel Cable Number 4 Panel Cable Length (m) 10 Mode Type Multimode Firmware / Software Docs Offset Ports No PHYSICAL Cable Jacket Rating OFNP Cable Outer Diameter (OD) 2.9MM Clad Diameter (micron) 125 Core Diameter (micron) 50 Primary Coating Diameter (micron) 245 Number of Fibers 24 Cable Length (ft.) 32.8 Cable Length (m) 10.00 Cable Length (in.) 393.7 Minimum Bend Radius 20MM (DYNAMIC); 10MM (STATIC) COMMUNICATIONS Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps Wavelength 1300nm; 850nm Attenuation @ 850NM 3.0dB/KM Attenuation @ 1300NM 1.0dB/KM Insertion Loss 0.35dB
Package Contents	N48M-4M3X8M-10 Preloaded Fiber Panel 4 x MTP/MPO-PC to MTP/MPOPC Trunk Cables, 10 m (32.8 ft.) Installation Guide
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	Network Patch Panel
Manufacturer Part Number	N48M4M3X8M10
Manufacturer Website Address	https://tripplite.eaton.com/
Manufacturer	Eaton Corporation
