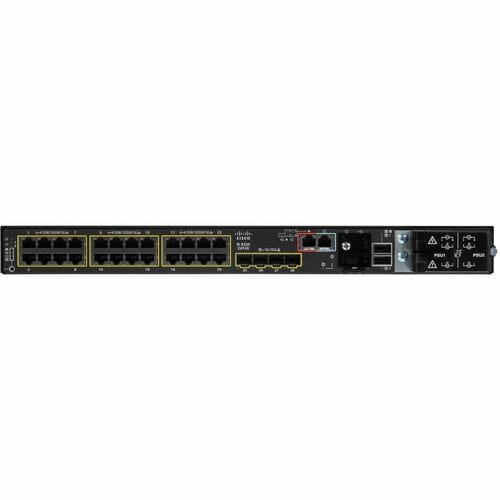

The Cisco Catalyst™ IE9300 Rugged Series ushers in mainstream adoption of Gigabit / 10 Gigabit Ethernet connectivity in compact 1RU, rack-mount switches that are purpose-built for a wide variety of industrial and extended enterprise applications.
Product overview
Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with support for Cisco Cyber Vision and Cisco Secure Network Analytics.
The IE9300 Rugged Series switches offer:
- Robust resiliency enabled by features such as dual ring design, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), PROFINET, Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR) ring, EtherChannel, integrated redundant power supplies, dying gasp, etc.
- True zero-touch replacement for middle-of-the-night or middle-of-nowhere failures
- Line-rate, low-latency forwarding
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP) and PROFINET
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 24 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Technical Information | |
| Features | Fanless |
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Miscellaneous | |
| Application/Usage | Wireless Access Point |
| IP Phone | |
| Network | |
| Business | |
| Enterprise | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 2 x Stack | |
| 24 x Gigabit Ethernet Network | |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | IE932024T4XE |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Model | IE-9320-24T4X |
| Product Name | Catalyst IE-9320-24T4X Ethernet Switch |
| Product Line | Catalyst |
| Product Series | IE9300 |
| Brand Name | Cisco |
| Physical Characteristics | |
| Weight (Approximate) | 9.50 lb (4309.127515 g) |
| Form Factor | Rack-mountable |
| Compact | |
| Height | 1.72" (43.69 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 14" (355.60 mm) |
| Compatible Rack Unit | 1U |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 120 V AC |
| 18 V DC | |
| 230 V AC | |
| 75 V DC | |
| Power Source | AC/DC |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 35 W |
| PoE (RJ-45) Port | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p |
| IEEE 802.1D | |
| IEEE 802.1ae | |
| IEEE 802.1ab | |
| IEEE 802.3z | |
| IEEE 802.3u | |
| IEEE 802.3ah | |
| IEEE 802.3ad | |
| IEEE 802.3ab | |
| IEEE 802.1x | |
| IEEE 802.1w | |
| IEEE 802.1Q | |
| IEEE 802.1s |
