Acerca del producto
- DEVICE INTERFACE: 1 x M12 8-pin A-code male interface; 1 x RJ-45 network interface; 5m (16.4 ft.) cable length
- TRENDNET M12 RAILWAY SWITCHES: Designed to be compatible with the TRENDnet 5 Port Industrial M12 Gigabit PoE+ Railway Switch (TI-XPG50)
- INDUSTRIAL RATED CABLE: The RJ-45 industrial Ethernet cable is IP67 weather rated -25° - 80° C (-13° - 176° F)
- PUR JACKET: The ultra-durable polyurethane "PUR" jacket of the Industrial M12 to RJ-45 cable resists oil and other contaminants, has strong flame resistance, and high tensile strength, tear resistance, and abrasion resistance.
- MAX CONTACT RESISTANCE: 20?

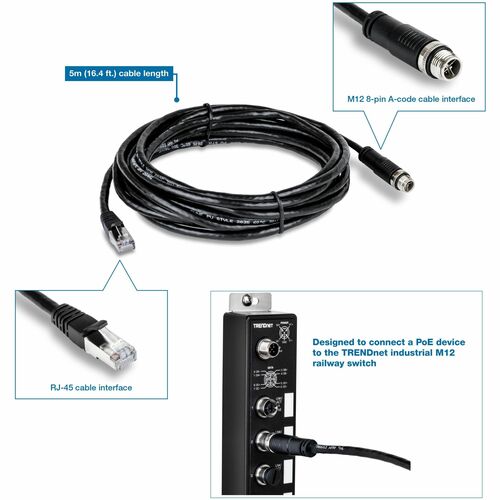

TRENDnet's M12 to RJ-45 Industrial Ethernet Cable, 5m (16.4 ft.), model TI-CD05, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications.
Cable InterfacesDesigned to connect an RJ-45 PoE device to the 8-pin M12 interface on the industrial railway switch
Cable Length5m (16.4 ft.) cable length
IP67 Rated CableRugged IP67 weather rated cable
- Features Moisture Resistant
- Experience a simpler way to connect devices with the entire business network
- Dual ports; M12 and RJ-45 offer instant connectivity
- Fully compatible with switches
Especificaciones técnicas
| Physical Characteristics | |
| Weight (Approximate) | 8.82 oz (250 g) |
| Miscellaneous | |
| Compatibility | TRENDnet Industrial Switches:
|
| Country of Origin | Taiwan |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | TICD05 |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TI-CD05 |
| Product Name | M12 to RJ-45 Industrial Ethernet Cable, 5m (16.4 ft.) |
| Brand Name | TRENDnet |
| Technical Information | |
| Cable Length | 16.4 ft (5 m) |
| Device Supported | Switch |
| Network Device | |
| Features | Weather Resistant |
| Rugged | |
| PoE | |
| Oil Resistant | |
| Moisture Resistant | |
| Cable Type | M12/RJ-45 |
| Connector Type on First End | M12 - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector on First End Details | 1 x 8-pin M12 - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
