Acerca del producto

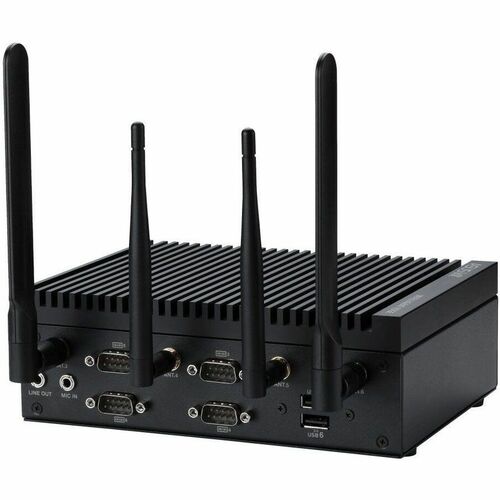

ASUS EBS-S100 is an Embedded Computer powered by the Intel Atom® x7000E Series, Intel® Processor N-series. It utilizes a fanless thermal solution for efficient cooling and offers rich I/O interfaces, along with diverse connectivity options suitable for AIoT applications. Featuring up to 6 COM ports, 6 USB ports, and support for dual display configuration via HDMI/DP interfaces, EBS-S100 ensures versatile connectivity.
To ensure optimal performance and adaptability to different environments, it is equipped with a wide range of power inputs (9-36V DC) and versatile I/O interfaces. These features enhance its capabilities, making it well-suited for efficient solutions at the edge diverse range of vertical market applications.
EBS-S100 is ideal for smart retail, industry automation, AGV, AMR, IoT Gaming, and various AIoT applications.
- Compact box and fanless design for industrial environment
- Intel Gen12 UHD & 4K display support via DP and HDMI
- Various connectivity of Wi-Fi 5/6, Bluetooth, 4G LTE and GPS
- Rich I/O and Expansion Capabilities 6 COM and 6 USB
- Wide range of power inputs 9-36V DC
Especificaciones técnicas
| Built-in Devices | |
| Fanless | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| I/O Expansions | |
| "Number of 2.5"" Bays" | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 4.08 lb (1850 g) |
| Form Factor | Wall Mount |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Memory | |
| Maximum Memory Supported | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 1 |
| Processor | |
| Processor Speed | 1.50 GHz |
| Processor Type | Atom |
| Processor Model | X7425e |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| General Information | |
| Product Type | Industrial Computer |
| Manufacturer Part Number | 90AE01D1M00050 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | EBS-S100-BJA |
| Product Name | EBS-S100-BJA Industrial Computer |
| Brand Name | Asus |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 4 |
