Acerca del producto
Ultraslim and reliable Mini PC powered by 11th Gen Intel® Core™ processors and Intel Iris® Xe Graphics, up to 64 GB DDR4 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel 2.5 Gb LAN, Thunderbolt™ 4*, WiFi 6
- Powerful performance with 11th Gen Intel®Core™ processors
- Intel Iris®Xe Graphics delivers outstanding graphics performance and supports up to four displays simultaneously
- Compact, space-saving 0.67-liter metal chassis ensures reliability and suitability across a wide range of industries
- PCIe®Gen 4 x4 M.2 NVMe®SSD for fast data transfers
- Comprehensive I/O connectivity including dual Thunderbolt™ 4 ports, PD power input and 2.5 Gb LAN
- Intel Dynamic Tuning Technology (DTT): Automated optimization to ensure best system performance
- ASUS Corporate Stable Model program ensures a 36-month stable-supply guarantee
- 24/7 reliability - Extensively tested to ensure long-term dependability
Ultracompact mini PC with rich connectivity features, designed for diversified industrial applications

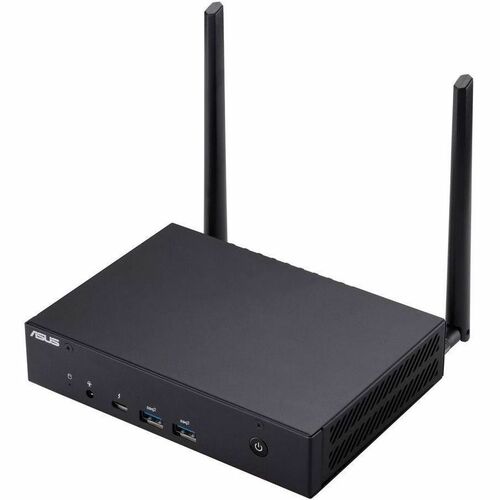

ASUS Mini PC PL63 is a compact mini PC with a space-saving 0.67-liter chassis. It's powered by an 11th Gen Intel®Core™ processor with Intel Iris®Xe graphics to handle commercial tasks with ease. Mini PC PL63 offers PCIe®Gen 4 x4 M.2 NVMe SSD support and features Intel 2.5 Gb LAN, along with dual Thunderbolt™ 4 ports that enable quad-display support and Power Delivery (PD) input, allowing PL63 to draw power directly from a display. A robust metal chassis ensures durability and reliability, even in the harsh environments, making it ideal for retail, enterprise and educational applications.
Design | Compact, space-saving design for versatile deployment
The robust and ultra-compact ASUS Mini PC PL63 easily blends into any retail, office, medical or educational environment. Its lightweight 0.67-liter chassis measures just 167 x 120 x 34 mm, so it can be placed almost anywhere ? or it can be VESA-mounted on the back of a display for a space-saving, all-in-one solution.
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- With NVMe interface get superb reliability and high-speed data transfer
Especificaciones técnicas
| Chipset | |
| Chipset Manufacturer | Intel |
| Controllers | |
| Controller Type | NVMe |
| I/O Expansions | |
| Number of M.2 Interfaces | 1 |
| Display & Graphics | |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Operating System | |
| Operating System Supported | Windows 10 Pro |
| Windows 11 Pro | |
| Power Description | |
| Thermal Design Power | 28 W |
| Maximum Power Supply Wattage | 90 W |
| Processor | |
| 64-bit Processing | Yes |
| Processor Generation | 11th Gen |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 x4 |
| Supported Storage Drive Types | SSD |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Total Number of Memory Slots | 2 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| HDMI (Rear) | Yes |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.2 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Weight (Approximate) | 1.54 lb (700 g) |
| Form Factor | Mini PC |
| Height | 1.33" (33.90 mm) |
| Width | 6.54" (166.20 mm) |
| Depth | 4.71" (119.70 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | 90MR00P1-M00040 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PL63-BB30000XT |
| Product Name | PL63-BB30000XT Barebone System |
| Product Series | PL63 |
| Brand Name | Asus |
