Acerca del producto

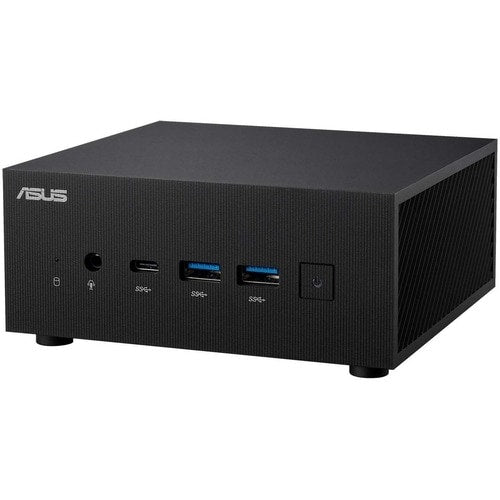

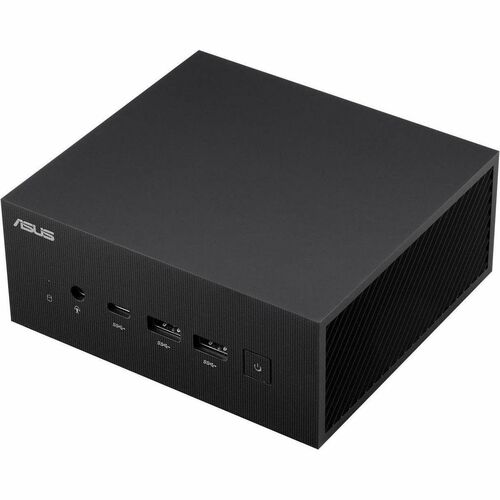

Ultra-compact mini PC with AMD Ryzen™ 6000H series processors and AMD Radeon ™ Graphics, supports Quad-4K displays and 8K resolution, 2x PCIe® Gen4x4 M.2 NVMe® SSD, 2.5 Gb LAN, WiFi 6E
- Powered by the latest AMD Ryzen™ 6000H Series Processor with Radeon™ graphics
- Quad-4K displays support and 8K UHD support**
- Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections

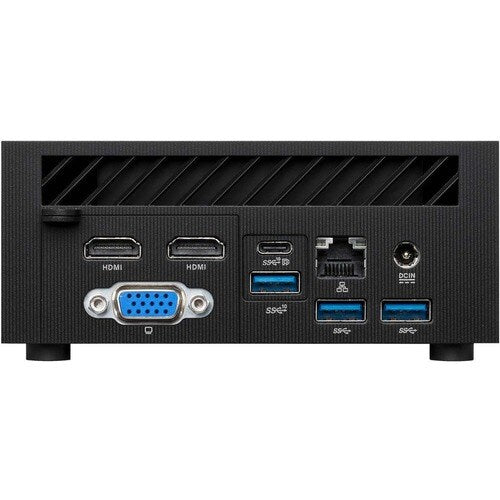

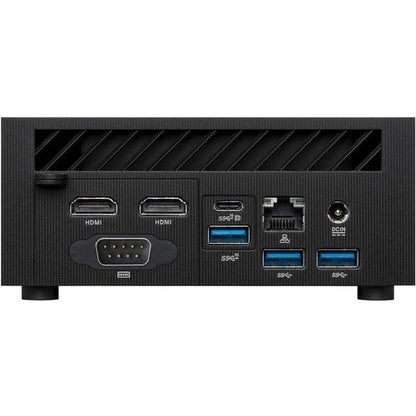

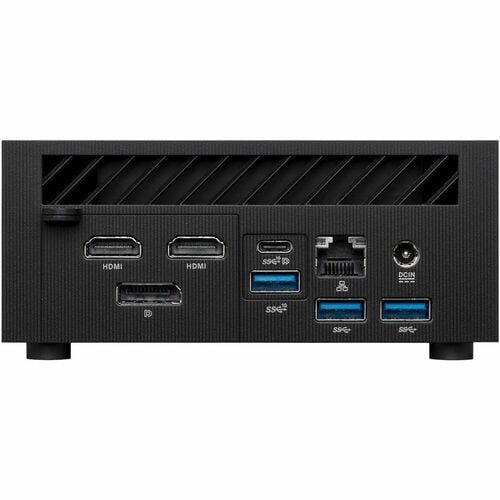

- Configurable Ports support DP1.4/VGA/COM/HDMI options
- 24/7 reliability - Extensively tested to ensure long-term dependability

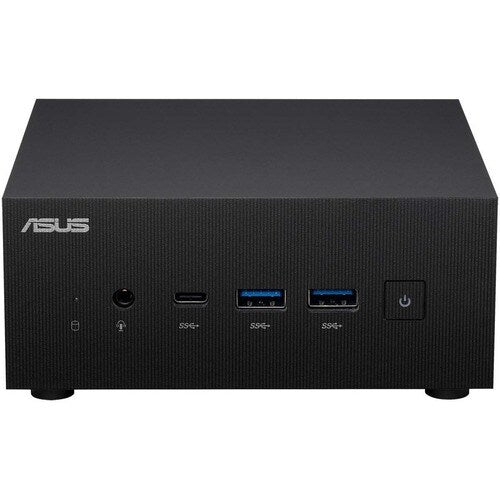

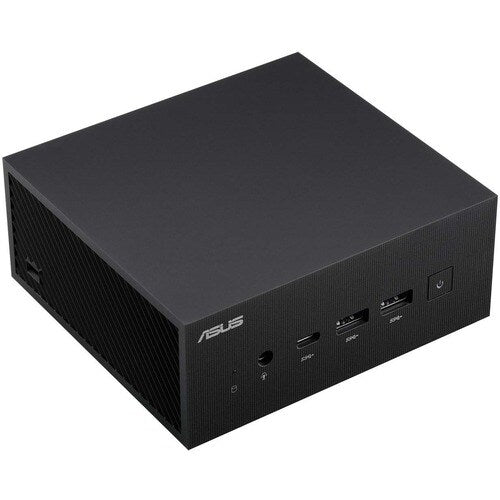

Ultra-compact Mini PC provides flexible, comprehensive solutions
ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the latest AMD Ryzen™ 6000 series processor combined AMD Radeon™ 600M series graphics, and can accommodate multiple storage combinations. There's also two ultrafast PCIe® Gen 4 SSD slots and DDR5 support to ensure fast boot times and rapid app loads.
System & CPU Performance
PN53 delivers a system performance uplift of up to 10% better performance in daily multitask computing, comparing to previous generation - providing powerful computing capacity and enabling easy multitasking and smooth operation.
Graphics Performance
ExpertCenter PN53 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 55% in 3DMark Fire Strike and increasing 49% 3DMark Night Raid performance benchmarks.
Ultrafast PCIe® 4.0 SSD
PCIe 4.0 doubles the data transfer rate of the prior PCIe 3.0 standard. ExpertCenter PN53 support one PCIe Gen4 x4 SSD to deliver greater data performance and lower latency.
Versatile USB 4 Type-C
Power Delivery
The Power Delivery (PD) function can either receive power from a supported display or supply power to mobile devices.
Superfast data transfers
Experience up to 40 Gbps data transmission speeds with USB
DisplayPort™
Enjoy up to 8K @ 30 Hz video output.
Faster and Better DDR5 RAM
ASUS ExpertCenter PN53 is powered by the new AMD 6000 Series CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN53 provides excellent performance for daily computing tasks.
- Powered by the latest AMD Ryzen™ 6000H Series Processor with Radeon™ graphics
- Quad-4K displays support and 8K UHD support
- Support 7 USB ports, including 2 x USB 4 Type C ports, and on-board dual HDMI ports
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 & Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Multi-storage design, support up to up to 2x M.2 PCIe Gen4x4 SSD and 1x HDD
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
- Configurable Ports support DP1.4/VGA/COM/HDMI options
- 24/7 reliability - Extensively tested to ensure long-term dependability
Especificaciones técnicas
| Chipset | |
| Chipset Manufacturer | AMD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Power Description | |
| Maximum Power Supply Wattage | 150 W |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |
| Operating System | |
| Operating System Supported | Windows 11 Home |
| Windows 11 Pro | |
| Display & Graphics | |
| Graphics Controller Model | Radeon Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 2 |
| Miscellaneous | |

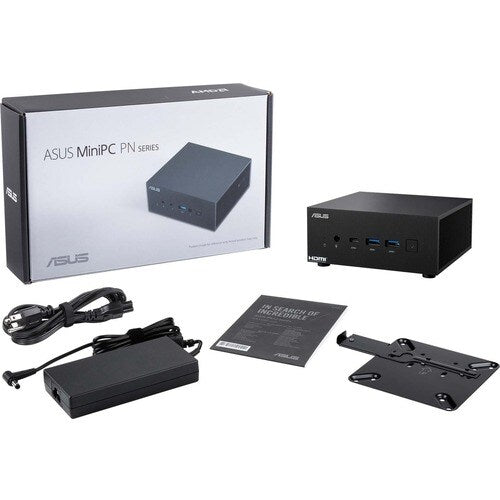

| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| PCI Express 4.0 x4 | |
| Supported Storage Drive Types | HDD |
| SSD | |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.2 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Processor | |
| Processor Supported | Ryzen 7 |
| Ryzen 5 | |
| Ryzen 9 | |
| 64-bit Processing | Yes |
| Number of Processors Supported | 1 |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 2.28" (58 mm) |
| Width | 4.72" (120 mm) |
| Depth | 5.12" (130 mm) |
| Product Color | Black |
| Color Family | Black |

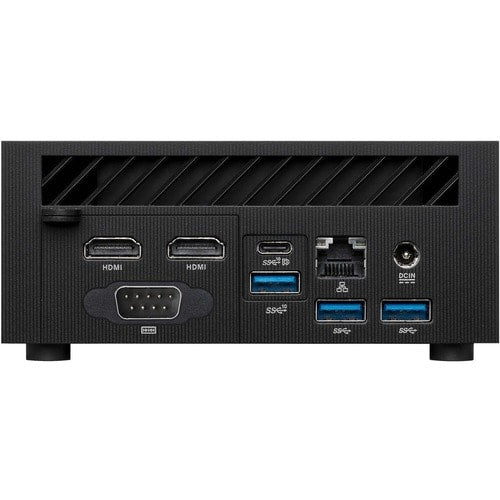

| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 7 |
| USB Type-C Detail | 1 x USB 4 Type-C (w/ DP output); 1 x USB 4 Type-C (w/ DP output, PD power input) |
| HDMI (Rear) | Yes |
| USB Type-C (Front) | Yes |
| USB Type-C (Rear) | Yes |
| Number of USB 3.2 Gen 1 Ports | 5 |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | 90MR00S2M002H0 |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PN53-BB7000X1TDR-NL |
| Product Name | ExpertCenter PN53-BB7000X1TDR-NL Barebone System |
| Product Line | ExpertCenter |
| Product Series | PN53 |
| Brand Name | Asus |
