Módulo de distribución Eaton 9PXPPDM1 3U PowerPass - 6 x NEMA 5-20R - 3U - Montaje en rack

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

The 9PXPPDM1 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features one L6-30R, one L14-30R and six NEMA 5-20R outlets for connecting equipment with resettable 30A circuit breakers protecting against overload conditions.

Compatible with Select Eaton 5kVA/6kVA 9PX UPS Systems

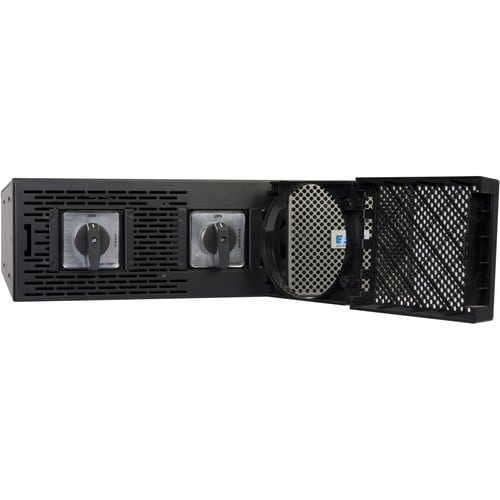

The 9PXPPDM1 works with Eaton's 9PX5K, 9PX6K and 9PX3K3UN 9PX UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains protected against power surges and spikes, even while the UPS system is not present.

Versatile Installation Options

You can mount the 9PXPPDM1 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware. The six-foot power cord with L6-30P plug connects to a compatible AC outlet.

• Converts high-voltage AC output into low voltage for powering low-voltage equipment
• Provides extra protection against power spikes and surges that can damage equipment
• Resettable circuit breakers protect connected equipment from hazardous overloads
• Maintenance bypass allows UPS service or replacement without powering down load
