Acerca del producto
Experience the superior clarity of Dahua’s 5MP HDCVI cameras for vast coverage and superior image details. The 5MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The HDCVI camera offers multiple output formats that are easily switchable and a 16:9 aspect ratio. With a 16:9 format, images maintain a true, undistorted view without stretching, a feature not found on many 5MP HD over coax cameras. The camera is suitable for most applications, offering IR illumination for difficult lighting conditions, input voltage tolerance for inconsistent power supplies, and IP67 certification for operation in harsh outdoor environmental conditions.

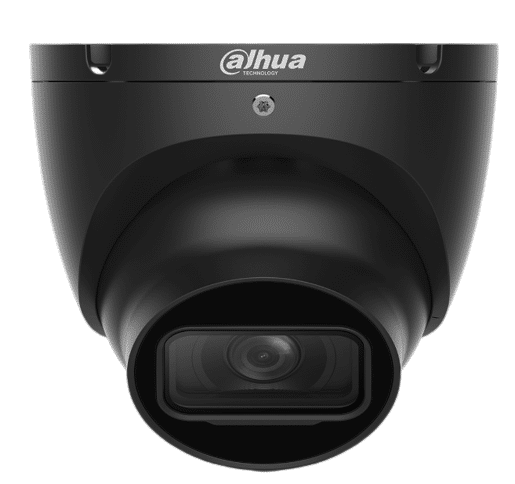

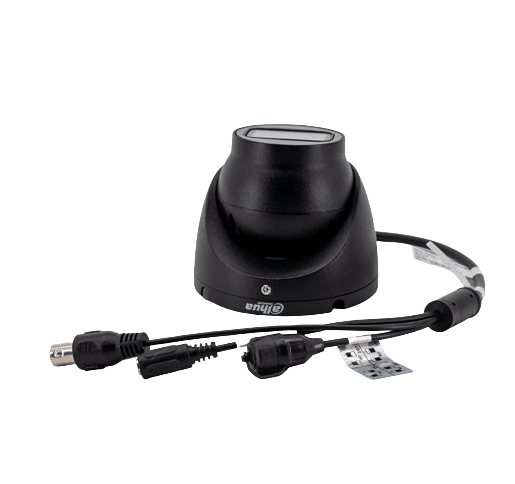

Dahua A51BJ02-B 5MP HDCVI Fixed Eyeball Camera Features:
- 1/2.7-in. 5MP Progressive-scan CMOS Sensor
- 5MP (2880 x 1620) at 25 fps Maximum Resolution
- 16:9 Aspect Ratio for no Image Stretching
- 2.8 mm Fixed Lens
- HDCVI, AHD, TVI, or CVBS Output, Switchable
- Maximum IR Length 30 m (98.43 ft), Smart IR
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Five-year Warranty
Dahua A51BJ02-B 5MP HDCVI Fixed Eyeball Camera Specification:
Camera:
- Image Sensor: 1/2.7"" CMOS
- Effective Pixels: 2592(H) x 1944(V), 5MP
- Electronic Shutter Speed: 1/3 s to 1/100,000 s
- Minimum Illumination: 0.02 lux at F2.0 (Color), 0 lux with IR on
- IR Distance: Up to 30m (98.43 ft)
- IR On/Off Control: Auto, Manual
- Lens Type: Fixed lens / Fixed iris
- Focal Length: 2.8mm
- Angle of View: Horizontal: 97°, Vertical: 70°
- Close Focus Distance: 800mm (31.50"")
Video:
- Max. Resolution: 2592 x 1944
- Frame Rate: 20fps@5MP, 25/30fps@4MP, 25/30/50/60fps@1080P
- Video Output: 1-channel BNC HDCVI high definition video output / CVBS standard definition video output (switchable)
Day/Night:
- Auto (ICR), Color, B/W
- Noise Reduction: 2D/3D
Audio:
- Built-in Mic: Yes
- Audio Compression: G.711A, G.711Mu, AAC, G.726
Smart Function:
- Smart Detection: Tripwire, Intrusion, Scene Change, Face Detection
- Smart Codec: Support H.265+/H.265/H.264+/H.264
General:
- Power Supply: DC12V±30%
- Power Consumption: Max 3.6W
- Operating Conditions: -30°C to +60°C (-22°F to +140°F), Less than 95% RH
- Ingress Protection: IP67
- Dimensions: ?106mm x 93.7mm (?4.17"" x 3.69"")
- Weight: 0.27kg (0.60lb)
Especificaciones técnicas
Experience the superior clarity of Dahua’s 5MP HDCVI cameras for vast coverage and superior image details. The 5MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The HDCVI camera offers multiple output formats that are easily switchable and a 16:9 aspect ratio. With a 16:9 format, images maintain a true, undistorted view without stretching, a feature not found on many 5MP HD over coax cameras. The camera is suitable for most applications, offering IR illumination for difficult lighting conditions, input voltage tolerance for inconsistent power supplies, and IP67 certification for operation in harsh outdoor environmental conditions.
Dahua A51BJ02-B 5MP HDCVI Fixed Eyeball Camera Features:
- 1/2.7-in. 5MP Progressive-scan CMOS Sensor
- 5MP (2880 x 1620) at 25 fps Maximum Resolution
- 16:9 Aspect Ratio for no Image Stretching
- 2.8 mm Fixed Lens
- HDCVI, AHD, TVI, or CVBS Output, Switchable
- Maximum IR Length 30 m (98.43 ft), Smart IR
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Five-year Warranty
Dahua A51BJ02-B 5MP HDCVI Fixed Eyeball Camera Specification:
Camera:
- Image Sensor: 1/2.7"" CMOS
- Effective Pixels: 2592(H) x 1944(V), 5MP
- Electronic Shutter Speed: 1/3 s to 1/100,000 s
- Minimum Illumination: 0.02 lux at F2.0 (Color), 0 lux with IR on
- IR Distance: Up to 30m (98.43 ft)
- IR On/Off Control: Auto, Manual
- Lens Type: Fixed lens / Fixed iris
- Focal Length: 2.8mm
- Angle of View: Horizontal: 97°, Vertical: 70°
- Close Focus Distance: 800mm (31.50"")
Video:
- Max. Resolution: 2592 x 1944
- Frame Rate: 20fps@5MP, 25/30fps@4MP, 25/30/50/60fps@1080P
- Video Output: 1-channel BNC HDCVI high definition video output / CVBS standard definition video output (switchable)
Day/Night:
- Auto (ICR), Color, B/W
- Noise Reduction: 2D/3D
Audio:
- Built-in Mic: Yes
- Audio Compression: G.711A, G.711Mu, AAC, G.726
Smart Function:
- Smart Detection: Tripwire, Intrusion, Scene Change, Face Detection
- Smart Codec: Support H.265+/H.265/H.264+/H.264
General:
- Power Supply: DC12V±30%
- Power Consumption: Max 3.6W
- Operating Conditions: -30°C to +60°C (-22°F to +140°F), Less than 95% RH
- Ingress Protection: IP67
- Dimensions: ?106mm x 93.7mm (?4.17"" x 3.69"")
- Weight: 0.27kg (0.60lb)
