Acerca del producto
Experience the superior clarity of Dahua’s 5MP HDCVI cameras for vast coverage and superior image details. The 5MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The HDCVI camera offers multiple output formats that are easily switchable and a 16:9 aspect ratio. With a 16:9 format, images maintain a true, undistorted view without stretching, a feature not found on many 5MP HD over coax cameras. The camera is suitable for most applications, offering IR illumination for difficult lighting conditions, input voltage tolerance for inconsistent power supplies, and IP67 certification for operation in harsh outdoor environmental conditions.

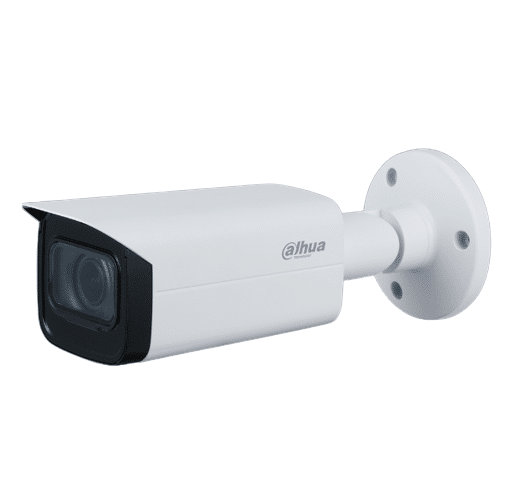

Dahua A52BFAZ 5MP HDCVI Vari-focal Bullet Camera Features:
- 1/2.7-in. 5MP Progressive-scan CMOS Sensor
- 5MP (2880 x 1620) at 25 fps Maximum Resolution
- 2.7 mm to 13.5 mm Motorized Vari-focal Lens
- 16:9 Aspect Ratio for no Image Stretching
- Starlight Technology for Low-light Applications
- True Wide Dynamic Range (120 dB) and 3D Noise Reduction
- Built-in Microphone
- HDCVI, AHD, TVI, or CVBS Output, Switchable
- Maximum IR Length 80 m (262.47 ft), Smart IR
- IP67 Ingress Protection
- Five-year Warranty
Dahua A52BFAZ 5MP HDCVI Vari-focal Bullet Camera Specifications:
Camera:
Image Sensor: 1/2.7"" CMOS
- Effective Pixels: 2592(H) x 1944(V), 5MP
- Electronic Shutter Speed: 1/3 s to 1/100,000 s
- Minimum Illumination: 0.03 lux at F1.6 (Color), 0 lux with IR on
- IR Distance: Up to 60m (196.85 ft)
- IR On/Off Control: Auto, Manual
- Lens Type: Motorized lens / Auto iris
- Focal Length: 2.7mm - 13.5mm
- Angle of View: Horizontal: 106° - 29°, Vertical: 56° - 16°
Video:
- Max. Resolution: 2592 x 1944
- Frame Rate: 20fps@5MP, 25/30fps@4MP, 25/30/50/60fps@1080P
- Video Output: 1-channel BNC HDCVI high definition video output / CVBS standard definition video output (switchable)
Day/Night:
- Auto (ICR), Color, B/W
- Noise Reduction: 2D/3D
Audio:
- Built-in Mic: Yes
- Audio Compression: G.711A, G.711Mu, AAC, G.726
Smart Function:
- Smart Detection: Tripwire, Intrusion, Scene Change, Face Detection
- Smart Codec: Support H.265+/H.265/H.264+/H.264
General:
- Power Supply: DC12V±30%, ePoE (optional)
- Power Consumption: Max 7.5W
- Operating Conditions: -30°C to +60°C (-22°F to +140°F), Less than 95% RH
- Ingress Protection: IP67
- Dimensions: 244.1mm x 90.4mm x 90.4mm (9.61"" x 3.56"" x 3.56"")
- Weight: 0.67kg (1.48lb)
Especificaciones técnicas
Experience the superior clarity of Dahua’s 5MP HDCVI cameras for vast coverage and superior image details. The 5MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The HDCVI camera offers multiple output formats that are easily switchable and a 16:9 aspect ratio. With a 16:9 format, images maintain a true, undistorted view without stretching, a feature not found on many 5MP HD over coax cameras. The camera is suitable for most applications, offering IR illumination for difficult lighting conditions, input voltage tolerance for inconsistent power supplies, and IP67 certification for operation in harsh outdoor environmental conditions.
Dahua A52BFAZ 5MP HDCVI Vari-focal Bullet Camera Features:
- 1/2.7-in. 5MP Progressive-scan CMOS Sensor
- 5MP (2880 x 1620) at 25 fps Maximum Resolution
- 2.7 mm to 13.5 mm Motorized Vari-focal Lens
- 16:9 Aspect Ratio for no Image Stretching
- Starlight Technology for Low-light Applications
- True Wide Dynamic Range (120 dB) and 3D Noise Reduction
- Built-in Microphone
- HDCVI, AHD, TVI, or CVBS Output, Switchable
- Maximum IR Length 80 m (262.47 ft), Smart IR
- IP67 Ingress Protection
- Five-year Warranty
Dahua A52BFAZ 5MP HDCVI Vari-focal Bullet Camera Specifications:
Camera:
Image Sensor: 1/2.7"" CMOS
- Effective Pixels: 2592(H) x 1944(V), 5MP
- Electronic Shutter Speed: 1/3 s to 1/100,000 s
- Minimum Illumination: 0.03 lux at F1.6 (Color), 0 lux with IR on
- IR Distance: Up to 60m (196.85 ft)
- IR On/Off Control: Auto, Manual
- Lens Type: Motorized lens / Auto iris
- Focal Length: 2.7mm - 13.5mm
- Angle of View: Horizontal: 106° - 29°, Vertical: 56° - 16°
Video:
- Max. Resolution: 2592 x 1944
- Frame Rate: 20fps@5MP, 25/30fps@4MP, 25/30/50/60fps@1080P
- Video Output: 1-channel BNC HDCVI high definition video output / CVBS standard definition video output (switchable)
Day/Night:
- Auto (ICR), Color, B/W
- Noise Reduction: 2D/3D
Audio:
- Built-in Mic: Yes
- Audio Compression: G.711A, G.711Mu, AAC, G.726
Smart Function:
- Smart Detection: Tripwire, Intrusion, Scene Change, Face Detection
- Smart Codec: Support H.265+/H.265/H.264+/H.264
General:
- Power Supply: DC12V±30%, ePoE (optional)
- Power Consumption: Max 7.5W
- Operating Conditions: -30°C to +60°C (-22°F to +140°F), Less than 95% RH
- Ingress Protection: IP67
- Dimensions: 244.1mm x 90.4mm x 90.4mm (9.61"" x 3.56"" x 3.56"")
- Weight: 0.67kg (1.48lb)
