From a single central console, the Dell Digital KVM switch, engineered by Avocent, provides out-of-band access to devices in the rack even when the network is down or when the device OS crashes. Unlike software alternatives, digital KVMs are uniquely capable of bringing a new server up from bare metal, diagnosing and restoring a failing device, updating firmware or enabling BIOS-level access, and patching a device independent of the state of the managed device or network.
The Digital switches give users the ability to securely access manage traditional servers remotely via their keyboard, video and mouse ports as well as the ability to manage these servers, and other devices like storage heads or network switches, regardless of whether the server or network is up and running. Devices are accessed either via a modem connection or over a TCP/IP network. These connections support DES, 3DES, AES or 128-bit SSL encryption of both KVM and Virtual Media sessions.
- Advanced remote management
- Meet service level agreements and minimize downtime
- Virtual media
- CAC/Smart card support
- Enhanced serial adapters
- Power device port
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Quickly and easily set up a wired network with 16 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 2 |
| Miscellaneous | |
| Certifications & Standards |
|
| TAA Compliant | Yes |
| Media & Performance | |
| Network Technology | 1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | A7546774 |
| Manufacturer Website Address | http://www1.ca.dell.com |
| Manufacturer | Dell Technologies |

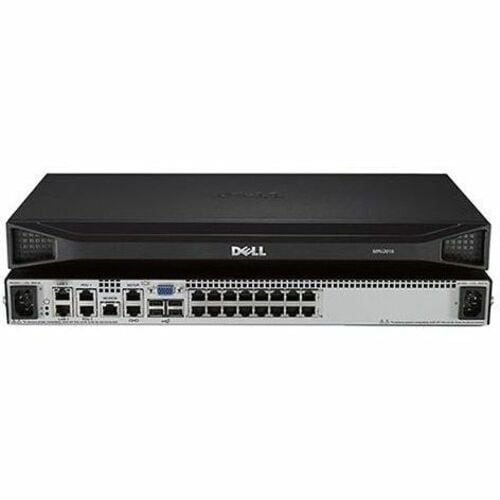

| Product Name | 16-port Digital KVM Switch - 2 IP users - TAA Compliant |
| Brand Name | Dell |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 1 x VGA HD-15 Port |
| 1 x RJ-45 Management Port | |
| 3 x USB Type A Port | |
| 16 x Gigabit Ethernet KVM RJ-45 Network Port | |
| Physical Characteristics | |
| Weight (Approximate) | 8.60 lb (3900.894382 g) |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17" (431.80 mm) |
| Depth | 9.20" (233.68 mm) |
| Compatible Rack Unit | 1U |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Power Consumption | 18 W |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
